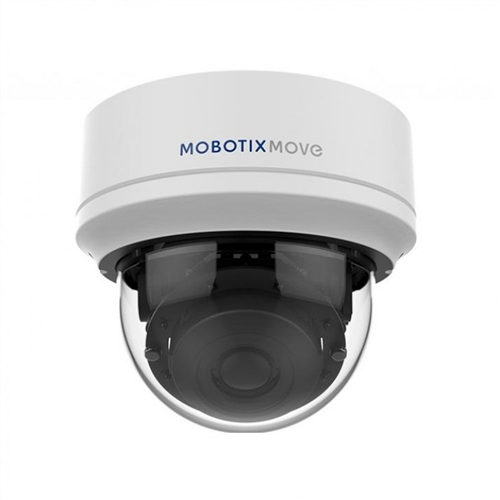

MOBOTIX MX-VD1A-4-IR Outdoor Day/Night Dome Camera, Varifocal Lens, IR LED (30m), 4MP Mobotix 'Move' Series IP Camera

Outdoor Day/Night Dome Camera, Varifocal Lens, IR LED (30m), 4MP Mobotix 'Move' Series IP Camera

Works with NVR and VMS solutions such as Milestone and QNAP QVR/Surveillance Station

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The MX-VD1A-4-IR vandal dome camera is part of the new Mobotix Move range.

This camera features a resolution of 4MP and captures up to 30 frames per second, even when WDR mode is switched on; ensuring good quality image even in poor light conditions.

  • Weatherproof ONVIF S / G dome camera with integrated IR LEDs (up to 30 m) for day and night operation
  • Image sensor: 4MP (2688 x 1512), 1/3" Progressive CMOS • Automatic changeover from color to B / W image (mechanical IR cut filter)
  • Remote Zoom
  • Motor-controlled Varifocal lens (F1.7: 3 to 9 mm, viewing angle HxV: 103 ° -35 ° x 53 ° -23 °) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations
  • IP66, IK10
  • Ambient temperature -30 to 65°C, humidity 10 to 90%
  • Video codecs: H.264, MJPEG (up to 3 streams simultaneously )
  • Wide Dynamic Range (120 dB)
  • Max. Frame rate: 4MP @ 30B / s (H.264, with and without WDR enabled); MJPEG: 1080p @ 30 B / s
  • Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W

- Motorised lens with auto focus function
- Wide Dynamic Range 120dB
- Dual Iris support
- Remote zoom/focus/iris control on AF lens
- Quick connection mounting
- IR LED built-in
- IP66 and IK10
- Extended temperature range up to 65°C

Image chip size : 1/3"
Image chip type : Progressive CMOS
Image Compression : H.264 & Motion JPEG
Audio : G.711
Install Indoors or Outdoors
Ingress Protection : IP66
Colour/Mono switching
POE built-in
Max. Resolution : 2688 x 1512
Min. low-light lux : 0.01
Power Supply : 12V DC, 24V AC, PoE
Auto-focus zoom lens
Lens Focal Length : 3~9mm
Viewing Angle : Variable 103° ~ 35° Horizontal Field of View
Aspect ratio : 16:9
Megapixels : 4 MP
Supplied with lens
IR Range : Up to 30m
Max. Images per second : 30
ONVIF Compatible : Yes
Power Consumption : max. 13.68W
