  • PowerBeamAC Gen 2, 5GHz High Performance airMAX AC Bridge

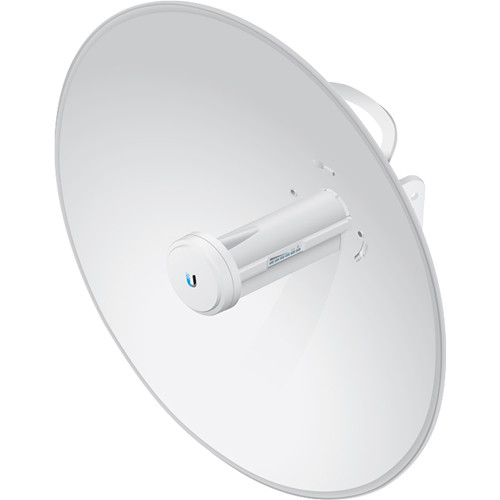

Ubiquiti PBE-5AC-GEN2 PowerBeamAC Gen 2, 5GHz High Performance airMAX AC Bridge

PowerBeamAC Gen 2, 5GHz High Performance airMAX AC Bridge

PowerBeam AC Gen2 5 GHz High Performance airMAX ac Bridge

  • Highly Efficient Antenna Beam Performance
  • Up to 450+ Mbps Throughput
  • Dedicated Wi-Fi Radio for Management

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Dedicated Wi-Fi Radio for Management
  • Dual-Band 2.4 GHz & 5 GHz Frequencies
  • 25 dBi Gain
  • 1 x Gigabit Ethernet Network Interface
  • MIPS 74Kc Processor
  • Power, Ethernet, Signal Strength LEDs
  • Outdoor UV Stabilized Plastic Antenna
  • 125 mph Wind Loading / Survivability
  • ± 24 kV ESD/EMP Protection
  • Includes Pole-Mounting Kit

With tighter beamwidth and a dedicated Wi-Fi radio for management, the PowerBeam AC Gen2 5 GHz High Performance airMAX ac Bridge from Ubiquiti Networks offers a more reliable long distance point-to-point connection. This radio is designed to filter out noise to reduce interference in areas congested with multiple RF signals. Setup is simple thanks to fully adjustable hardware making it easy to adjust the mounting bracket ± 20° along with the ability to detach the antenna feed with the push of a button.

Improved Noise Immunity
The PowerBeam 5AC Gen2 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam 5AC Gen2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
Integrated Design
Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring a high-performance and innovative mechanical design, the PowerBeam AC Gen2 is versatile and cost-effective to deploy.

Dimensions : 420 x 420 x 230 mm
Weight : 2.22 kg
Power Supply : 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption : 8.5W
Power Method : Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range : 20 to 26VDC
Gain : 25 dBi
Networking Interface : (1) 10/100/1000 Ethernet Port
Processor Specs : MIPS 74Kc
Memory : 64 MB
LEDs : Power, Ethernet, (4) Signal Strength
Mounting : Pole-Mounting Kit (Included)
Wind Loading : 380 N @ 200 km/h (85.4 lbf @ 125 mph)
Wind Survivability : 200 km/h (125 mph)
ESD/EMP Protection : Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature : -40 to 70° C (-40 to 158° F)
Operating Humidity : 5 to 95% Noncondensing
