- 1920 x 1080 Resolution at 25 fps
- IR LEDs for Night Vision Functionality
- 3.4mm Fixed Lens
- 87.4° Horizontal Field of View
- Built-In Microphone
- RJ45 Ethernet with PoE Technology
- UniFi Mobile App for iOS and Android
- Weather Resistant for Outdoor Use
- Indoor and Outdoor Mounts Included

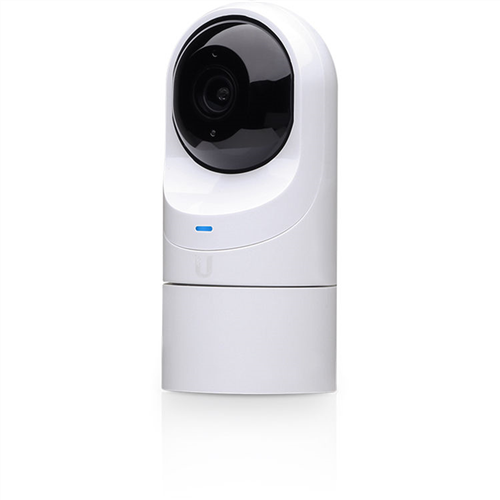

The UVC G3 Flex camera is designed to work with Ubiquiti's new integrated management system, UniFi Protect. UniFi Protect is a flexible and powerful IP video surveillance system that can manage UniFi Protect cameras and the UniFi Protect mobile app. The software is free from all hosting and licensing fees and comes pre-installed on UniFi's Cloud Key Gen2 Plus, model UCK-G2-PLUS.
Note: The UVC G3 Flex camera will also work with the UniFi Video® 3 controller software. UniFi Video may be hosted on any of the following:
• UniFi Application Server, model UAS-XG
• UniFi NVR, model UVC-NVR-2TB
• A Linux or Windows computer
Use the Base Mount by itself to install the G3 Flex camera on a desktop or tabletop. Out of the box, this mount comes preinstalled on the camera.
Use the Base Mount with two screws to install the G3 Flex camera on a wall (vertically).
Use the Base Mount with two screws to install the G3 Flex camera on a solid horizontal surface or ceiling.
Use the Pole Mount with two screws and the Outdoor Cover to install the G3 Flex camera on a wall or flat surface outdoors. The Outdoor Cover is not required for indoor installations.
Use the Pole Mount with two plastic zip ties and the Outdoor Cover to install the G3 Flex camera on an outdoor pole. The Outdoor Cover is not required for indoor pole installations.
Additional Mounts Available
There are two additional mounts available for the G3 Flex: a Ceiling Mount and a Pendant Mount. Each is sold separately.
Use the optional Ceiling Mount, Screw Kit, and Mount Cover to install the G3 Flex camera on a solid horizontal surface or ceiling.
Use the optional Ceiling Mount, Mount Cover, and Back Plate Assembly to install the G3 Flex camera on a drop tile ceiling or horizontal surface where the interior side of the Ceiling Mount is accessible.
Use the Pendant Mount to install the G3 Flex camera onto a fitted 3/4" or 1.5" conduit mount or ceiling pipe.
Dimensions Ø 107.5 x 48 x 48 mm
Weight 170 g
1/2.7" 2-Megapixel HDR Sensor
Lens EFL 4mm / f2.0
Viewing Angle with Lens Distortion Correction (LDC)
LDC Off 87.4° (H), 47° (V), 104° (D)
LDC On 80° (H), 46° (V), 92° (D)
Night Mode IR LEDs with Mechanical ICR Filter
Video Compression H.264
Resolution 1080p FHD (1920 x 1080)
Maximum Frame Rate 25 FPS
Image Settings Brightness, Contrast, Sharpness, Saturation,
Noise Reduction, 50/60 Hz
Management Interface UniFi Protect; UniFi Video
Networking Interface (1) 10/100 Ethernet Port
Max. Power Consumption 4W
Power Method 802.3af PoE
Power Supply 802.3af PoE Switch Port
Mounting Table, Wall (Indoor/Outdoor), Pole
Operating Temperature -20 to 50° C
Operating Humidity 20 to 90% Noncondensing
G3 Flex Camera
Security Screw (Qty. 1)
Screws (Qty. 3)
Screw Anchors (Qty. 3)
Zip Ties (Qty. 2)
