  • APX 530 802.11ac Wave 2 Wireless AP, 3x3:3, 1300 Mbps

SOPHOS A530TCHNP APX 530 802.11ac Wave 2 Wireless AP, 3x3:3, 1300 Mbps

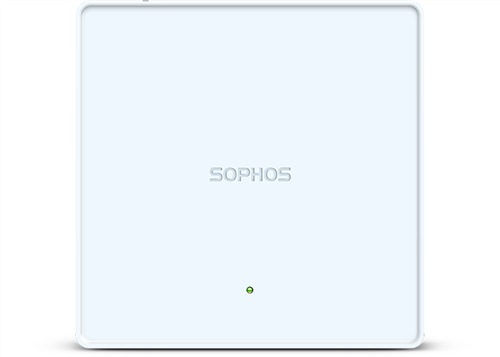

APX 530 802.11ac Wave 2 Wireless AP, 3x3:3, 1300 Mbps

High-performance 3x3:3 access point for typical office environments of all sizes

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The Sophos APX Series is a growing portfolio of Synchronized Security ready access points. With 802.11ac Wave 2 technology, they are custom-built for increased throughput at load and better performance and security.

APX Series – Product Benefits

  • Security Heartbeat™ ready to connect with other Sophos Central managed products
  • Significant performance improvement over legacy 802.11 Wave 1 models
  • Optimized for both wall- and ceiling-mount
  • 5-year warranty as standard
  • Advance Replacement RMA included in subscription

Cloud-management in Sophos Central or on-premises management via XG Firewall and SG UTM

APX Series access points enable basic Synchronized Security functionality with Sophos Endpoint, Sophos Mobile and Sophos Server when managed through Sophos Central.

Using APX Series access points with Sophos XG Firewall offers advanced Synchronized Security functionality with Sophos Endpoint and Sophos Server independent of the use of the Wireless Protection features.

  • Deployment :  Indoor; desktop, wall, or ceiling mount
  • WLAN Standards  : 802.11a/b/g/n/ac
  • Radios  : 1x 2.4 GHz single band, 1x 5 GHz single band, 1x Bluetooth low energy (BLE)
  • Antennas : 3x internal 2.4 GHz antenna for Radio-1, 3x internal 5 GHz antenna for Radio-2, 1x internal 2.4 GHz antenna for BLE
  • Performance :  3x3:3 MU-MIMO
  • Interfaces :  1x RJ45 connector console serial port, 1x RJ45 10/100/1000 Ethernet port, 1x RJ45 10/100/1000 Ethernet w/PoE
  • Power (Max.) : 16.7 W
  • Power-over-Ethernet (Min.) : PoE+ 802.3at (PoE injector not included)
  • Dimensions : 183x183x39 mm
  • Weight  : 0.922kg

Compliance : All APX models have a plenum-rating and comply with EN 60601-1-2
Warranty : All APX models have a standard 5-year warranty included in the purchase price
Support  : A Central Wireless Standard Subscription for APX includes Enhanced Support with Advance Replacement RMA

* A bracket for wall- and/or 15/16", 9/16", 3/8" T-bar ceiling-mount is included with every APX. Further mounting kits will be available for purchase in the near future.
