DrayTek DV2133VAC UFB Router/Firewall, QoS, VPN, GigE WAN/LAN, 802.11ac WiFi, 2x FXS/ATA

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

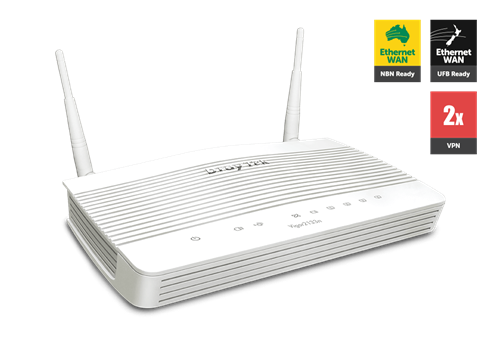

The DrayTek Vigor2133 Series high-performance router is developed for use on with the super-fast broadband networks. It features a Gigabit Ethernet WAN port and support for 802.1Q VLAN.

Besides being a reliable Internet gateway, the Vigor2133 Series offer an abundance of business-grade features, such as Firewall, Content Filtering, VPN, Bandwidth Management, which makes it also a perfect solution for home offices and teleworkers.

  • UFB Ready
  • 1x Gigabit WAN ports with 1 x USB port for 3.5G / 4G Mobile Fail-Over
  • 4x Gigabit LAN ports with 30,000 NAT sessions and IPv6
  • 2 x FXS RJ-11 ports for VoIP via analogue phones
  • Object-based SPI Firewall, Content Security Management (CSM) and QoS
  • 2 x VPN tunnels including 2 x SSL VPN tunnels
  • 2 x USB ports for 3G / 4G Backup, FTP server & network printers
  • AC1200 Wi-Fi – up to 300 + 867Mbps speed
  • Support TR-069 for VigorACS 2 Central Management

This model includes a VoIP Gateway for using analogue (plain old) phones to connect to a VoIP network.

  • Protocol SIP, RTP/RTCP, ZRTP
  • SIP Registrars 12
  • Dial Plan Phone Book, Digit Map, Call Barring, Regional
  • Call Features Call Waiting, Call Transfer, Scheduled DND, Hotline
  • Voice Codec G.711 A/u law, G.726, G.729 A/B
  • Caller ID FSK_ETSI, FSK_BELLCORE, DTMF

Hardware:
• Interface: 1x GbE WAN port, 4x GbE LAN port, 2x USB 2.0 port,
2 x FXS RJ-11 ports, Factory Reset Button, Power On/Off Switch
• Power:
- DC 12V @2A
- Max. Power Consumption: 24 watts
• Temperature:
- Operating: 0°C ~ 45°C
- Storage: -25°C ~ 70°C
• Humidity: Operating: 10% ~ 90% (non-condensing)
• Dimension (mm): 207 (L) x 131 (W) x 42 (H) (8.1″ x 5.2″ x 1.7″)

WAN:
• WAN: PPPoE Client, DHCP Client, Static IP, PPTP/L2TP, 802.1Q VLAN Tagging, Triple-Play Applications, 3G/4G Backup
• IPv6: PPP, DHCPv6 Client, Static IPv6, TSPC, AICCU (AYIYA/Heartbeat), 6rd, 6in4 Static Tunnel
• Failover: 3G/4G Backup
• Connectivity Detection: ARP, Ping Probe

LAN Management:
• VLAN: Up to 8 VLAN, 802.1Q Tag-based VLAN, Port-based VLAN
• DHCP Server: Up to 4 IP Subnet, Bind-IP-to-MAC, Custom DHCP Option
• DNS Control: Local Name Server, Conditional DNS Forwarding
• Hotspot Portal:
- Authentication by Click-Through, Social Login, and SMS PIN
- Custom Portal Page
- URL Redirection
- Walled-Garden

Routing:
• Static Route: 30 IPv4 Static Routing Rules, 40 IPv6 Static Routing Rules, Inter-VLAN Routing
• Dynamic Routing: RIP v1/v2
• Policy-Based Routing:
- 10 Route Policy
- Criteria: Protocol, Source IP, Destination IP, Destination Port
- Failover options

VPN:
• Performance: Up to 2 concurrent tunnels, Up to 2 concurrent SSL VPN
• Protocols
- PPTP, L2TP, IPsec, L2TP over IPsec, SSL, IKEv2
- LAN-to-LAN VPN
- Teleworker-to-LAN VPN
• Encryption: MPPE 40/128 bit, Hardware-based AES/DES/3DES
• Authentication:
- PAP, CHAP, MS-CHAP, MS-CHAPv2
- MD5, SHA-1
- Pre-Shared Key, Digital Signature (X.509)
- mOTP
• Advanced: Hub-and-Spoke Topology support
, NAT-Traversal (NAT-T)
, Dead Peer Detection (DPD)
, DHCP over IPsec
, Single-Armed VPN

Firewall:
• NAT:
- One-to-One Port Redirection
- Range-to-Range Port Redirection
- Open Ports
- Port Triggering
- DMZ Host
- ALG: SIP, RTSP, FTP, TFTP, H.323
- VPN Pass-Through: PPTP, L2TP, IPsec
- UPnP
• Firewall Filter: IP-based Firewall Policy, User-based Firewall Policy, Object-based Configuration, Schedule Enable/Disable
• Content Filtering: URL Keyword Filtering, Category Filtering (subscription required), DNS Keyword Filtering, Web Features Filtering
• Attack Protection: DoS Defense

Bandwidth Management:
• Bandwidth Policy: Session Limit, Bandwidth Limit, IP-Based Policy, Scheduled Enable/Disable
• Quality of Service: Layer 3 QoS (TOS/DSCP), Layer 2 QoS (802.1p), 4-Level Priority with user-defined classification, Bandwidth Borrowing, Guaranteed bandwidth for VoIP traffic, APP QoS

Network Features:
• Network Features: Dynamic DNS, DNS Security, RADIUS Client, Bonjour, IGMP Proxy, IGMP Snooping, SMB File Sharing
• User Authentication: Local User Database, RADIUS Server

Wireless LAN:
• Standards: 802.11b/g/n (2.4G), 802.11 a/n/ac (5G)
• SSID: Up to 4 SSID per radio, SSID-based 802.1Q VLAN
• Radio Management: Auto Channel Selection, Auto Channel Width (2.4G), Wi-Fi Scheduling
• Security:
- WEP, WEP-802.1x, WPA-PSK, WPA-802.1x, WPA2-PSK, WPA2-802.1x
- Hidden SSID
- Client Isolation
- Access Control per SSID
- WPS
• Advanced: AirTime Fairness, Band Steering (ac/Vac model), WMM
• WDS: Bridge, Repeater

Management:
• Configuration:
- Web Interface: HTTP, HTTPS
- Command-Line Interface: Telnet, SSH
- TR-069 via VigorACS
- Config File Export & Import
- Compliant with the config file exported from Vigor2760
• F/W Upgrade: TFTP, HTTP, TR-069
• Admin Access Control:
- 2-level Administration Privilege
- Access from the Internet
- Access List
• Monitoring:
- Dashboard
- Syslog
- SMS/E-mail Alert
- TR-069 via VigorACS
- SNMP v2, v2c, v3
• Central Management: Wireless Controller for up to 2 VigorAP
