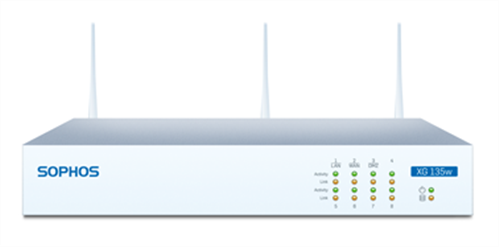

SOPHOS XW1DT3HAN XG 135w Rev.3 Security Appliance WiFi

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

 These powerful firewall appliances offer 1U performance with a desktop form factor and price. If you have a small business or branch offices to protect and are working on a tight budget, these models are the ideal choice. They are also available with integrated 802.11ac wireless LAN for optimal coverage and connectivity for your mobile workers. Built upon the latest Intel architecture, our software makes optimal use of the multi-core technology to provide excellent throughput for all your key processes. These models come equipped with 8 GbE copper ports built-in, plus 1 SFP port, e.g. for use with our optional
DSL modem or an SFP Fiber transceiver to connect the device to a server or switch. An expansion bay provides the option to add additional connectivity such as our 3G/4G module. A 2nd Wi-Fi radio module is also available for the XG 135w. An optional second power supply ensures business continuity for these models.


Performance - XG 135W Rev. 3

Firewall throughput : 8 Gbps

Firewall IMIX : 5 Gbps

VPN throughput : 1.18 Gbps

IPS throughput : 2.48 Gbps

NGFW (IPS + App Ctrl) max. : 1.2 Gbps

Antivirus throughput (proxy) : 1.58 Gbps

Concurrent connections : 6,000,000

New connections/sec : 85,000

Maximum licensed users : unrestricted


Wireless Specification

No. of antennas : 3 external

MIMO capabilities : 3 x 3:3

Wireless interface : 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)


Physical interfaces

Storage : Integrated SSD

Ethernet interfaces (fixed) : 8 GbE copper, 1 SFP

I/O ports (rear) : 2 x USB 2.0, 1 x Micro-USB, 1 x COM (RJ45), 1 x HMDI

Power supply : External auto ranging DC: 12V, 100-240VAC, 36W@50-60 Hz

Redundant PSU optional (external)

Connectivity Modules (optional)

SFP DSL module (VDSL2)

3G/4G module

SFP transceivers


Physical specifications

Mounting : Desktop or Rackmount (rack kit available, to be ordered separately)

Dimensions : Width x Depth x Height 320 x 212 x 44 mm

Weight : 1.9 kg (unpacked), 3.3 kg (packed)



Power consumption : 18.6W, 63.426 BTU/hr (idle) 20.04W, 68.336 BTU/hr (full load)

Operating temperature : 0-40°C (operating) -20 to +80°C (storage)

Humidity : 10%-90%, non-condensing


Sophos XG Firewall provides comprehensive next-generation firewall protection that blocks unknown threats, automatically responds to incidents, and exposes hidden risks.

Security Heartbeat - Your firewall and your endpoints are finally talking

Sophos XG Firewall is the only network security solution that is able to fully identify the user and source of an infection on your network and automatically limit access to other network resources in response. This is made possible with our unique Sophos Security Heartbeat™ that shares telemetry and health status between Sophos endpoints and your firewall. The good news is, this all happens automatically, and is successfully helping numerous businesses and organizations to save time and money in protecting their environments today.

Every XG Firewall comes equipped with Base Firewall functionality including IPSec, SSL VPN, and Wireless Protection. (APs sold separately)


You can extend protection with protection bundles or by adding protection modules individually.

Network Protection

All the protection you need to stop sophisticated attacks and advanced threats while providing secure network access to those you trust.

Sandstorm Protection

Sophos Sandstorm uses next-gen cloud-sandbox technology to give your organization an extra layer of security against ransomware and targeted attacks.

Web Protection

Comprehensive web protection and application control with powerful and flexible policy tools ensure your networked users are secure and productive.

Security Heartbeat

Links your Sophos endpoints with your firewall to deliver unparalleled protection from advanced threats and reduce the time and complexity of responding to security incidents.

Email Protection

Full SMTP and POP message protection from spam, phishing and data loss with our unique all-in-one protection that combines policy-based email encryption with DLP and anti-spam.

Web Server Protection

Harden your web servers and business applications against hacking attempts while providing secure access to external users with reverse proxy authentication.

Contact us for more information, and subscription bundle options.


Standard Support (included with purchase)

Telephone and email support, Software Feature Updates & Upgrades, for 90 days.

12 months RTB hardware warranty

Enhanced Support (included in all UTM subscription bundles)

24/7 telephone and email support

Software Feature Updates & Upgrades

Advance replacement hardware warranty

Enhanced Plus Support (optional purchase)

VIP Access 24/7 telephone and email support

Software Feature Updates & Upgrades

Up to 4 hours of consulting services

Advance replacement hardware warranty
