Ubiquiti UMA-D UniFi Mesh Dual Band Dual Polarity 802.11ac Directional Antenna

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

This Ubiquiti UniFi Antenna is an optional mesh antenna designed to work with the UniFi AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customised pattern shaping. It is available in single and five packs.

  • Optimised for 802.11ac, UMA-D offers a high efficiency directional radiation pattern with dual polarity
  • Encased in UV-stabilised plastic, can be used indoors or outdoors

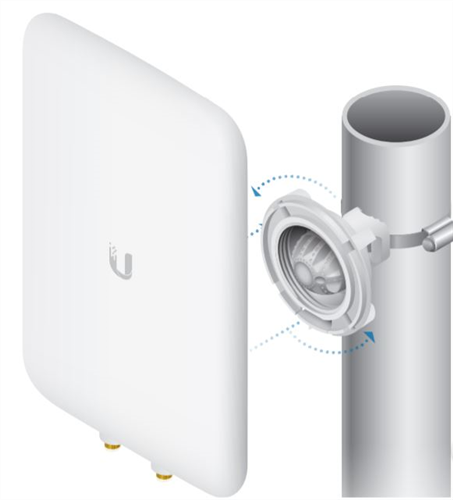

  • Ball joint mount designed for precise aiming and can be mounted on a pole or wall

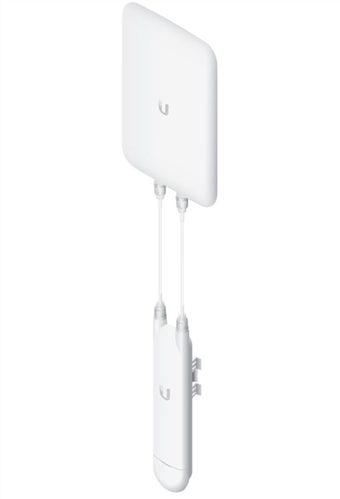

  • Connectorised antenna that is compatible with the UAP-AC-M

Frequency Range : 2.4 - 2.5 GHz, 5.1 - 5.9 GHz
Gain : 10dBi @ 2.4GHz, 15dBi @ 5GHz
Polarisation : Dual-Linear
Max VSWR : 2:1

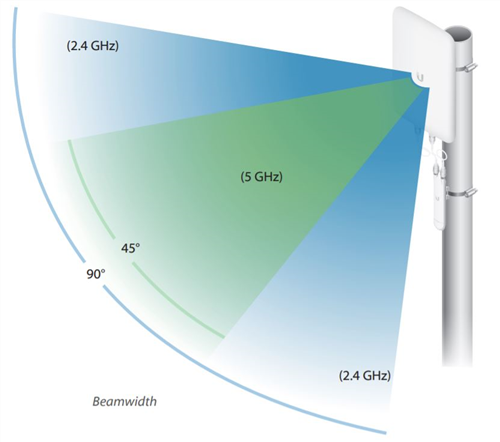

Vertical Beamwidth : 90deg @ 2.4GHz, 45deg @ 5GHz
Horizontal Beamwidth : 90deg @ 2.4GHz, 45deg @ 5GHz
Elevation Beamwidth : 90deg @ 2.4GHz, 45deg @ 5GHz
Connector Type : (2x) RP-SMA Female
Wind Loading : 125 mph
Pole Mount Diameter : 38 - 75mm
