• SFP
  • Gigabit Single-mode Bi-directional SFP (20km, TX/RX 1310/1550nm)

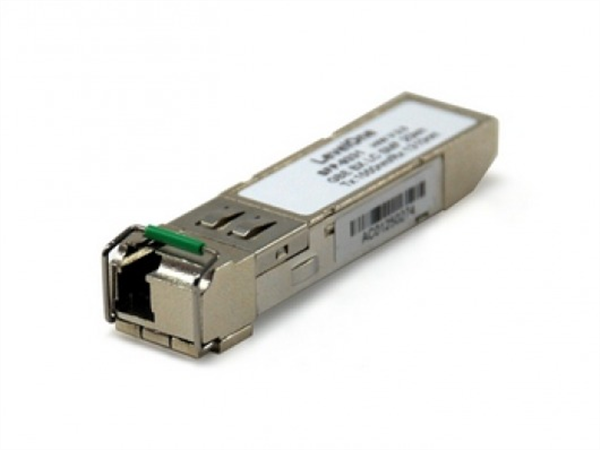

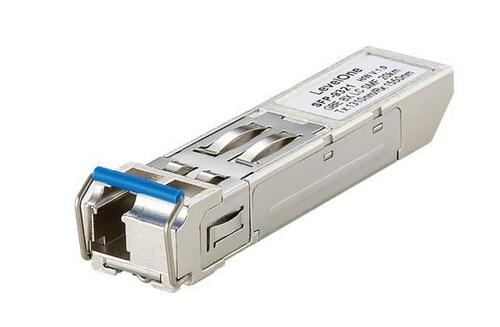

LevelOne SFP-9321 Gigabit Single-mode Bi-directional SFP (20km, TX/RX 1310/1550nm)

Gigabit Single-mode Bi-directional SFP (20km, TX/RX 1310/1550nm)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

The SFP-9321 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-9331 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.

1310nm FP LD
Multi Data Rate: from 125M to 1.25Gbps, NRZ
Single +3.3V Power Supply
RoHS Compliant and Lead-free
AC/AC Differential Electrical Interface
Compliant with Multi-Source Agreement (MSA)
Simplex LC Connector
Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
Compliance with ANSI specifications for Fiber
Channel applications at 1.06bps
No configuration or installation software required
Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
