The world’s best selling environmental and power monitoring platform has been upgraded. Start with a basic package to enable monitoring over a single cabinet. Expand to a full data center, one cabinet at a time. Every computer rack monitored using AKCP Pro Server.
- IP based, including SNMPv3, HTTPS, VPN
- Send encrypted SNMP Trap and Email Notifications

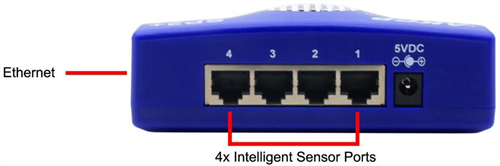

- Supports 4 Intelligent Sensors or up to 20 Dry Contacts
- Optional cellular modem with external antenna
- Notification Wizards
- Front and Rear Thermal Mapping for any server cabinet
- Low Cost Daisy Chained Temperature sensors
- Optional Expansion Module connectivity
- Virtual Sensors
- Optional Modbus/Canbus
Thermal Maps (Sold Separately)
Thermal map sensors help identify and eliminate hotspots in your cabinets by identifying areas where temperature differential between front and rear are too high.
Thermal Map Sensors consist of 6 temperature sensors, with 3 positioned at the front of your cabinet, and 3 at the rear. A dual temperature and humidity version is also available, giving 6 temperature sensors and 2 humidity sensors, one at the front bottom and one at the rear top.
Display the temperature at the top, middle and bottom, front and rear of the cabinet and in addition the differential between front and rear isindicated as “normal”, “warning” or “critical” by a colored arrow. Having an accurate picture of your cabinets hotspots aids planning of efficiently cooling your cabinet, and the placement of heat generating equipment. They can also assist in the detection of problems within the cabinet, such as blocked airflow, or insufficient air being drawn through the servers, which can indicate failure of server cooling fans.
Thermal Maps are easy to install, come pre wired and ready to mount. With magnetic or ultra high bond adhesive tape to hold them in position on your cabinet. Mount each sensor on the front and rear doors of your perforated cabinet so they are exposed directly to the airflow in and out of the rack.
SP2+ is compatible with all AKCP Intelligent sensors, making it an extremely versatile and cost effective monitoring solution. From the data center, to remote sites, industrial controls it has you covered.
Environmental Monitoring Sensors
Wherever monitoring of environmental conditions is important to your daily operations and health of equipment, deploy sensors to monitor temperature, humidity, airflow and water leaks.
RFID Access control swing handle cabinet locks, door contacts and motion detectors will keep you in tune with the security situation at your sites down to cabinet level. Control who can access and when with RFID access control, centrally managed and monitored through AKCP Pro Server.
AC Voltage detection, DC volt meters, sensor controlled relays and power metering can all be done on the SP2+
Ultrasonic tank level sensors can monitor for liquid levels in fuel tanks, oil storage, checmical tanks and so on. Any tank up to 2 meters in depth can be monitored. Alarms generated when levels drop to critical levels, making sure youc an re-fill with sufficient notice. Other specialized sensors include the keyswitch override, to disable notifications while maintenance work is being performed, and a programmable LCD display.
AKCP Pro Server (free with the purchase of SP2+)
- Manage cabinet maps, sensors, access control and other equipment from anywhere in the world.
- Monitor data center maps and drill down to single cabinets.
- Automate notifications based on sensor, power or access control sensors status.
- Notification Wizards : SNMP traps, Email, Popup Messages, SMS, Remote Unlock (and more…)
- Use custom scripts for complex sensor input or notification outputs.
AKA SP2+ and SP2-PLUS
