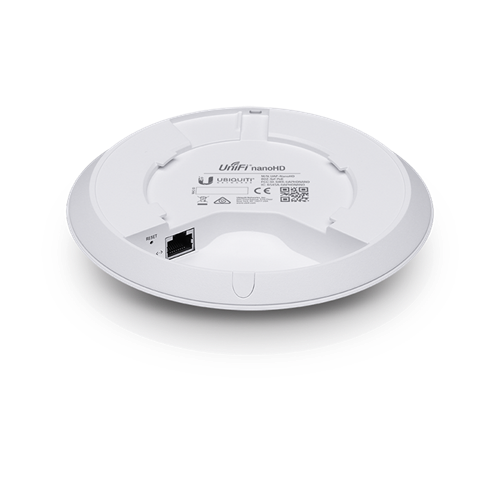

Ubiquiti UAP-NANOHD UniFi Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point

Ubiquiti Compact UAP AC Wave2

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
  • 4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate)
  • 802.3af PoE, PoE Injector Included
  • Same mount as UAP-AC-Lite
  • 160 x 160 x 32.65 mm and 300g

The Ubiquiti nanoHD 4x4 MU-MIMO 802.11ac Wave 2 Access Point is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Use the RF environment functionality of the UniFi nanoHD AP to detect and troubleshoot nearby interference, analyse radio frequencies, choose optimal AP placement, and configure settings. 802.11ac Wave2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows a Wave 2 AP, such as the UniFi nanoHD AP, to communicate with multiple clients at the same time – significantly increasing multiuser throughput and overall user experience. The UniFi nanoHD AP is the first UniFi 802.11ac Wave 2 AP. Combining the performance increases from MU-MIMO technology and the use of 4x4 spatial streams, the UniFi nanoHD AP delivers up to 125% greater performance than a typical Wave 1 AP. Optional skins (sold separately) allow the UniFi nanoHD AP to discreetly blend into its setting. Choose from four available designs.

  • Scalable Enterprise Wi-Fi Management
  • Four-Stream 802.11ac Wave 2 Technology
  • Supports 200+ Concurrent Users
  • 802.3af PoE Compatibility
  • Intuitive UniFi Controller Software
  • Compact Form Factor
  • 33% greater performance than a Wave 1 802.11ac
  • Powerful RF Performance Features
  • Optional coloured skins (sold separately)

Dimensions

160 x 160 x 32.65 mm

Weight
With Mounting Kits

300 g (10.6 oz)
315 g (11.1 oz)

Networking Interface

(1) RJ45 GbE

Buttons

(1) Reset to Defaults

Power Method

802.3af

Power Supply

PoE Injector Included

Optionally via UniFi Switch (PoE)

Max. Power Consumption

10.5W

Operating Frequency

2.4 GHz
5 GHz

Max. TX Power
2.4 GHz
5 GHz


23 dBm
26 dBm

Antenna Gain
2.4 GHz
5 GHz


2.8 dBi
3 dBi

MIMO
2.4 GHz
5 GHz


2x2
4x4

Throughput
2.4GHz
5GHz


300 Mbps
1733 Mbps

Wi-Fi Standards

802.11 a/b/g/n/ac/ac-wave2

Wireless Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

8 per Radio

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-10 to 70° C (14 to 158° F)

Operating Humidity

5 to 95% Noncondensing

Certifications

CE, FCC, IC
