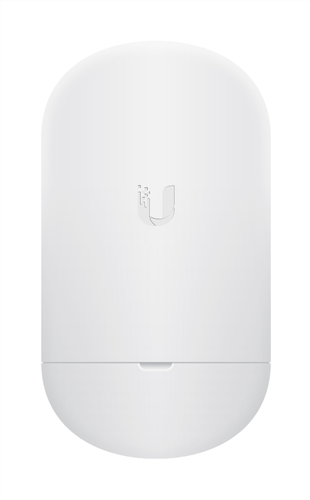

Ubiquiti NS-5ACL NanoStation Loco 5GHz 802.11ac Access Point (LOCO5AC)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 10/100/1000 Mbps Gigabit Ethernet Networking Interface
  • AP/Station/WDS Operating Modes
  • 5GHz Frequency Range : 5150-5875MHz
  • 45° (H-pol) / 45° (V-pol) Beamwidth
  • 2.4GHz for Management Radio
  • 10/20/30/40/50/60/80 MHz Bandwidth
  • 560 MHz Atheros MIPS 74Kc Processor
  • 64 MB DDR2 Memory
  • 1.8:1 Max VSWR
  • Dual Linear Polarisation
  • Outdoor Stabilized UV Plastic Enclosure
  • Pole Mount Ready
  • 24V Passive PoE (PoE Injector Sold Separately)
  • 25dBm Radio Output Power
  • 13dBi Antenna
  • Dimensions 179 x 77.5 x 59.1 mm

Designed for deployment in a variety of environments in which point to multi-point communication is needed, the NanoStation AC loco 5 GHz airMAX ac Radio from Ubiquiti Networks offers enhanced connectivity options. This radio comes equipped with a Gigabit Ethernet networking interface and supports 10/20/30/40/50/60/80 MHz channel bandwidths. Installation is simple, thanks to the included pole-mount ready kit, while the outdoor UV stabilized plastic enclosure allows the airMAX ac radio to be installed in nearly any environment.

- PoE injector (model POE-24-12W-G) sold seperately

Software : airOS 8
airOS 8 is the operating system for Ubiquiti airMAX ac products

Powerful Wireless Features
• Access Point PtMP airMAX mixed mode
• airMAX ac protocol support
• Long-Range Point-to-Point (PtP) link mode
• Selectable channel width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic channel selection
• Transmit Power Control: Automatic/manual
• Automatic distance selection (ACK timing)
• Strong WPA2 security

Usability Enhancements
• airMagic channel selection tool
• Dynamic configuration changes
• Instant input validation
• HTML5 technology
• Optimization for mobile devices
• Detailed device statistics
• Comprehensive array of diagnostic tools, including RF diagnostics and airView spectrum analyzer

Advanced RF Analytics
airMAX ac devices feature a multi-radio architecture to power an RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 5 GHz spectrum and every received symbol to provide you an advanced RF analytics engine.
Real-Time Reporting
airOS 8 displays the following RF information:
• Persistent RF Error Vector Magnitude (EVM) constellation diagrams
• Signal, noise, and interference (SNI) diagrams
• Carrier to interference-plus-noise ratio (CINR) histograms
Spectral Analysis
airView allows you to identify noise signatures and plan your networks to minimize noise interference.
airView performs the following functions:
• Constantly monitors environmental noise
• Collects energy data points in real-time spectral views
• Helps optimize channel selection, network design, and wireless performance
airView runs in the background without disabling the wireless link, so there is no disruption to the network. In airView, there are three spectral views, each of which represents different data: waveform, waterfall, and ambient noise level. airView provides powerful spectrum analyzer functionality, eliminating the need to rent or purchase additional equipment for conducting site surveys.

Mobile App : UMobile App
The NanoStation AC loco integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Accessing airOS via Wi-Fi
The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android). UMobile allows you to set up, configure, and manage your device, and offers various configuration options once you're connected or logged in.

airMAX ac

Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
This time slot method eliminates hidden node collisions and maximizes airtime efficiency, so airMAX technology provides performance improvements in latency, noise immunity, scalability, and throughput compared to other outdoor systems in its class.
Intelligent QoS
Priority assigned to voice/video for seamless streaming.
High capacity and scalability.
Long Distance
Capable of high-speed, carrier-class links.
Enhanced Performance
The next-generation airMAX ac technology boosts the advantages of our proprietary TDMA protocol. Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Throughput Breakthrough
airMAX ac supports high data rates, which require dense modulation: 256QAM - a significant increase from 64QAM, which is used in airMAX. With their use of proprietary airMAX ac technology, airMAX ac products supports up to 450+ Mb/s real TCP/IP throughput - up to triple the throughput of standard airMAX products.

Versatile Mounting

The NanoStation AC loco 5 GHz airMAX ac Radio is suitable for indoor and outdoor installations.
Improved Surge Protection
The NanoStation AC loco utilizes the latest ESD protection to help protect against power surges.
Efficient Footprint
The radio and antenna are combined into a single body that takes up minimal space.
Quick Installation

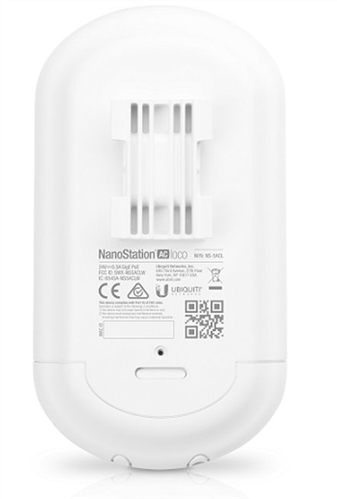

Ploe mount ready. No fasteners are required for pole-mounting installation.




Max Power Consumption

8.5 W

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

- PoE injector (model POE-24-12W-G) sold seperately


13 dBi

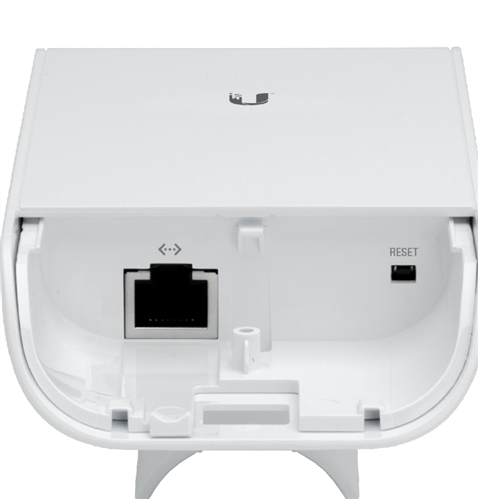

Networking Interface

10/100/1000 Mb/s Ethernet port

Channel Bandwidth

10/20/30/40/50/60/80 MHz


Atheros MIPS 74 Kc, 560 MHz


64 MB DDR2

Cross-Pol Isolation

20 dB Minimum




45° (H-pol) / 45° (V-pol) / 45° (Elevation)


Dual linear


Outdoor UV stabilized plastic


1 x Power LED indicator


Pole-mount (kit included)

Temperature & Humidity

Operating Temperature
-40 to 70°C
Operating Humidity
5 to 95% non-condensing

RoHS Compliance


ESD/EMP Protection

±24 kV contact/air

Shock and Vibration




Operating Frequency

5150 - 5875 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-3: 5725 - 5850 MHz


Management Radio
Worldwide: 2412 - 2472 MHz
USA: 2412 - 2462 MHz

Output Power

25 dBm


179 x 77.5 x 59.1 mm


180 g
