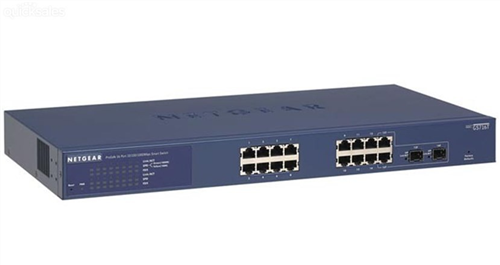

NETGEAR GS716T-300AJS ProSafe 16-port Gigabit Smart Switch, 2 shared SFP Ports

Designed for SMB Customers with High Performance and Easy Management

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 802.1p-based prioritization
  • Layer 3-based prioritization
  • Rate-limiting
  • Easy-going and Durable
  • Simple to set up and simple to use for effortless network monitoring and troubleshooting.
  • Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit

NETGEAR’s family of Prosafe Gigabit Smart Switches is purposely designed for SMB customers with high performance, SMB-oriented features and easy management. With 16 or 24 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode per port, plus two shared SFP ports, the GS716T-200 and GS724T-300 will enable SMB networks to support Voice over IP (VoIP), streaming media, multicasting, security, and many other bandwidth-intensive applications like ERP and large file transfers.

The GS716T-200 and GS724T-300 come with a comprehensive set of features, such as access control lists (ACL), 802.1x port authentication, enhanced QoS, rate limiting and IGMP snooping among others to provide a small and medium-sized business with a network that is geared for growth while ensuring performance and reliability.

 In addition, an intuitive, Web-browser interface offers the simple Smart Switch management, making it a snap to monitor switch performance, configure ports, even set up port trunks, VLANs, and traffic prioritization. Alternatively, use SNMP-based software to manage your Smart Switch. Shipped ready for use straight out of the box, it delivers switching that’s easy to set up and use. NETGEAR ProSafe Smart Switches are ideal for adding basic management to your unmanaged networks or extending your managed networks.

NETGEAR Green

Up to 70% power savings compared to the non-Green version
Auto power-down mode saves energy when port is unused
Cable length detection reduces power usage when network cable is shorter than 10 meters.

Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.

Enhanced Security
These Gigabit Smart Switches provide advanced features that provide more robust security to the SMBs. These include:

  • 802.1x for authentication
  • ACL filtering to permit or deny traffic based on MAC or IP addresses.
  • Advanced Quality of Service (QoS)

Priority queuing ensures high-priority traffic gets delivered efficiently, even during congestion from high-traffic bursts. Companies implementing network telephony or video conferencing, for example, need to be able to prioritize such voice and video traffic and other real-time applications over less latency-sensitive traffic to ensure reliability and quality. The ability to prioritize traffic ensures quality of latency-sensitive services and applications despite increasing traffic loads. The ProSafe Gigabit Smart Switch provides an extensive set of QoS features:

**Use with NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC module, ProSafe AGM732F 1000BASE-LX SFP GBIC module or ProSafe AGM733 1000BASE-ZX SFP GBIC.

Network Protocol and Standards Compatibility

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x full-duplex flow control

Interfaces

16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)
2 Dual Personality SFP slots for fiber Gigabit Ethernet modules

Administrative Switch Management

IEEE 802.1D Spanning Tree Protocol
IEEE 802.1W Rapid Spanning Tree Protocol
IEEE 802.1S Multiple Spanning Tree Protocol
Auto-voice VLAN*
SNMPv1, v2c, v3
RFC 1213 MIB II
RFC 1643 Ethernet Interface MIB
RFC1493 Bridge MIB
Jumbo Frame Support (up to 9KB)
IEEE 802.1Q Tag VLAN
GS716T: 128 Static VLANs
GS724T: 128 Static VLANs
IEEE 802.1p (Class of Service)
DSCP - L3 QoS
Port-based ingress/egress rate limiting
IEEE 802.3ad static or dynamic link aggregration (LACP)
DHCP client function
Broadcast storm control
Port mirroring (many-to-one)
Port setting
Green features: Power saving by cable length (<10m). Power saving by auto power when link down
IGMP snooping v1/v2
IEEE 802.1x (RAIDUS)
Access control list (ACL) - MAC, IP
SNTP
IEEE 802.1ab LLDp
Protected ports**
HTTP and HTTPS
Auto denial-of-service (DoS) prevention
Syslog
Ping & traceroute
Web-based configuration, anywhere on the network
Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent
Configuration backup/restore (easy to configure more than one switch)
Password access control
Firmware upgradeable
Support of Ehternet audio/video (EAV)*

Active Flow Control

Full-duplex IEEE 802.3x pause frame flow control
Half-duplex back-pressure control

Performance Specifications

Forwarding modes: Store-and-forward
Bandwidth: 32 Gbps

Network latency:
Average latency 4.5 us for 100 Mbps with 64 bytes
Buffer memory: 512 KB embedded memory per unit
Priority queues: 4
Priority queuing: Weighted Round Robin (WRR)
Address database size: 8,000 media access control (MAC) addresses per system
Addressing: 48-bit MAC address
Mean time between failures (MTBF): 401,205 hours
Acoustic Noise: 33 dBA

LEDs

Unit: Power
Per port: Link, activity, speed, duplex
Power Supply

Maximum Power Consumption:
- GS716T - 16.5W
- GS724T - 21.5W
100-240V AC/50-60 Hz universal input

Physical Specifications

Dimensions (h x w x d): 43 x 440 x 205 mm
Weight: 2.56 kg

Environmental Specifications

Operating temperature: 32° to 131°F (0° to 55° C)
Storage temperature: -4° to 158°F (-20° to 70° C)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum

Electromagnetic Compliance

CE mark, commercial
FCC Part 15 Class A
VCCI Class A
EN 55022 (CISPR 22)
EN 55024 (CISPR 24)
C-Tick

Safety Agency Approvals

UL listed (UL 1950)/cUL
IEC 950/EN 60950
CE mark, commercial
CUL 60950 (Listed)/EN 60950 (Low Voltage Directive)
CB
CCC
