NETGEAR Intelligent Edge Switch solutions combine the latest advances in hardware and software engineering for higher flexibility, lower complexity and stronger investment protection, at a high-value price point.
• 24-port 1000BASE-T (RJ45)
• 2-port 10GBASE-T (RJ45) all independent
• 2-port 10GBASE-X (SFP+) all independent
• 128Gbps non-blocking fabric across 28 ports
• Out-of-band 1G Ethernet Management port
• Mini-USB and RJ45 RS232 console ports and USB storage port
• Full L3 feature set and non-stop forwarding (NSF) stacking
• Full width form factor with one-unit rack mount kit
• Ships with one modular APS150W PSU in first power supply slot
• Ship with a blank cover in the second power supply slot
• Low acoustics (30.3dB @25°C / 77°F)

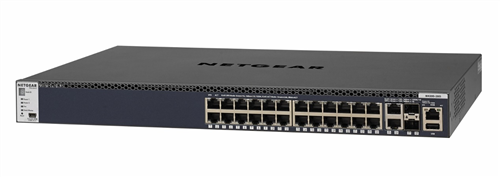

The NETGEAR® M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack.
Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing – as standard. Perfect for wireless access, unified communications and IP video, the NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.
Business Continuity Management
Full-width switches offer dual redundant, modular power supplies (select m4300 models)
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+ (30 watts per port), plug and play ports, and hot swap, you're ready to grow whenever you need to.
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation
READY FOR AV OVER IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
Non-Blocking Fabric for Near-Zero Switch Latency
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com
