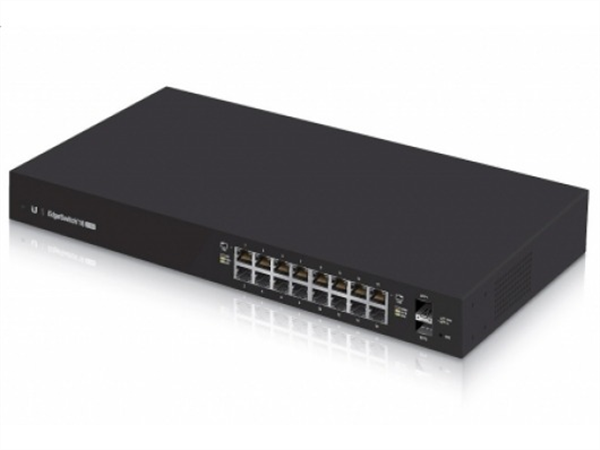

Ubiquiti ES-16-150W EdgeSwitch 16 Gigabit Ethernet Ports, 24V / 802.3af / 802.3at PoE, (150W max), 2 SFP Ports

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 16 x Gigabit Ethernet Ports
  • 2 x 1 Gbps SFP Ethernet Ports
  • 150 Watt Max. Power Consumption
  • Non-Blocking Throughput Switching
  • Auto-Sensing IEEE 802.3af/at PoE
  • Comprehensive User Interface
  • Rackmount Form Factor
  • Included Rack-Mount Brackets

With a comprehensive user interface and support for fiber connectivity the EdgeSwitch 16-Port 150-Watt Managed PoE+ Gigabit Switch with SFP from Ubiquiti Networks is a full featured networking solution. Along with the two 1 Gbps SFP Ethernet ports, you can take advantage of 16 Gigabit Ethernet ports supporting a max power over Ethernet wattage of 34.2 watts per port. The voltage ranges from 50 to 57 volts with a maximum passive power over Ethernet wattage per port of 17 watts. Other networking features include VLAN, private VLAN, voice VLAN, link aggregation, DHCP snooping, IGMP snooping, and much more. The unit comes with rack mount brackets.


Advanced Switching Technology
Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 16-port models support up to 18 Gbps.
PoE+ Flexibility
This EdgeSwitch PoE Gigabit Ethernet switch offers 16 ports of auto-sensing IEEE 802.3af/at and configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.
Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. This 16-port model includes two SFP ports, providing up to 1 Gbps uplinks.
Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command-line interface (CLI) is available through telnet and SSH.
Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port, and a variety of advanced features including:
• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing

Total Non-Blocking Throughput

18 Gbps

Max Power Consumption

150 W

Power Method

100-240 VAC / 50-60 Hz, Universal Input

Power Supply

AC/DC, Internal, 150 W DC AC/DC, Internal, 150 W DC

LEDs

RJ45 Data Ports
PoE, Speed/Link/Activity

SFP Data Ports
Speed/Link/Activity

LAN Ports

16 x 10/100/1000 Mbps RJ45 Ethernet Ports
2 x 1 Gbps SFP Ethernet Ports

Management Interface

Ethernet in/out band

Certifications

CE, FCC, IC

Rackmount

1U high

ESD/EMP Protection

Air: ±24 kV, Contact: ±24 kV

Operating Temperature

-5 to 40°C

Operating Humidity

5 to 95% non-condensing

Shock and Vibration

ETSI300-019-1.4 Standard

PoE

PoE Interfaces
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24 VDC Passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ Wattage per Port by PSE
34.2 W

Voltage Range 802.3at Mode
50-57 V

Max. Passive PoE Wattage per Port
17 W

24 V Passive PoE Voltage Range
20-27 V

Dimensions

443 x 43 x 221 mm

Weight

With Mount Brackets: 2.9 kg
Without Mount Brackets: 2.8 kg)
