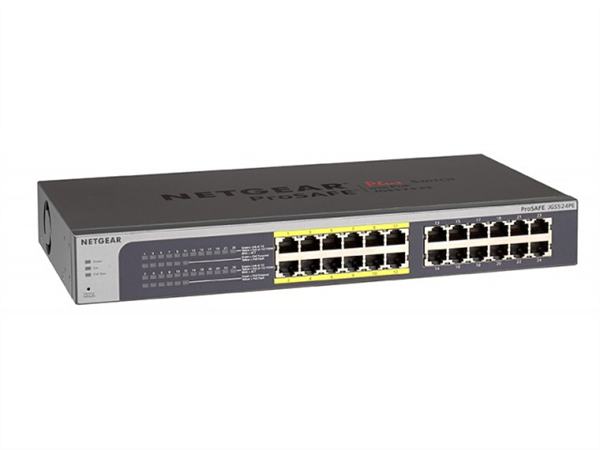

NETGEAR JGS524PE-100 ProSAFE Plus 24-Port Gigabit Ethernet Switch, Rackmount, 12 PoE Ports

24 Port Gigabit Ethernet PoE Smart Managed Plus Switch with 12-Ports PoE

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

JGS524PE-100AJS
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

ProSAFE Plus 24-Port Gigabit Rackmount Switch with 12 PoE Ports, 100W Total PoE Power.

Control and Configure Beyond Plug-and-Play Connectivity.

Today’s growing businesses rely more on their network to carry out missioncritical business activities. Deployment of VoIP and IP surveillance needs the network intelligence to separate the voice and video traffic from data, and prioritize them accordingly. However, companies do not necessarily have more money or advanced training to deal with complex managed switches.



Interfaces/Ports

Number of Network (RJ-45) Ports:

12

Number of PoE (RJ-45) Ports:

12

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network

Total Number of Network Ports:

24



Management & Protocols

Management:

  • DHCP
  • Web Based Management
  • VLAN
  • QoS



Media & Performance

Ethernet Technology:

Gigabit Ethernet

Media Type Supported:

Twisted Pair

Network Technology:

10/100/1000Base-T



Miscellaneous

Certifications & Standards:

  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3az
  • CE mark, commercial
  • CSA certifed (CSA 22.2 #950)
  • UL listed (UL 1950)/cUL IEC 950/EN 60950

Package Contents:

  • ProSafe JGS524PE Ethernet Switch
  • Power cord or power adapter (depending on models)
  • Rack-mounting kit
  • Quick Install Guide
  • Resource CD with PC Utility sofware



Network & Communication

Layer Supported:



Physical Characteristics

Depth:

169 mm

Form Factor:

Desktop

Form Factor:

Rack-mountable

Form Factor:

Wall Mountable

Height:

43 mm

Weight (Approximate):

1.84 kg

Width:

328 mm



ProSAFE Plus Features

• Enable network configuration and management at the price point of Unmanaged Switches
• Gigabit connection delivers up to 2000 Mbps of dedicated, non-blocking bandwidth per port
• Simple, yet useful network set-up on top of plug-and-play connectivity
• Flexible management via easy-to-use web browser-based management GUI or using the PC-based ProSAFE Plus Utility application
• VLAN support for traffic segmentation
• Quality of Service (QoS) for traffic prioritization
• Auto “denial-of-service” (DoS) prevention
• Troubleshoot connection issues via cable test
• Loop detection and broadcast storm controls
• IGMP snooping v1, v2 and v3 support for multicast optimization
• Rate limiting for better bandwidth allocation
• Port mirroring for network monitoring
• Link aggregation/port trunking (static manual LAGs only) for bigger uplink bandwidth (16-port and 24-port models only)
• Jumbo frame support
• Energy Efficient Ethernet (IEEE 802.3az) support for maxium power savings
