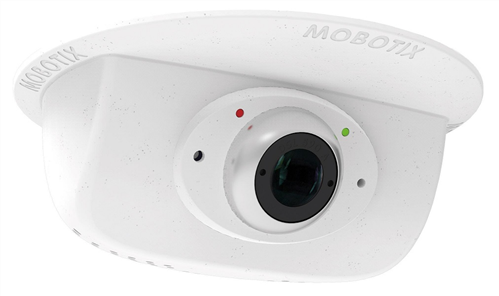

MOBOTIX MX-P26A-6N In-Ceiling 6MP Night Camera with Pan/Tilt positioning (add lenses)

This IP Camera range is positioned extremely price competitively and with all the included MOBOTIX features, represents one of the most attractive security solutions in the market.

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

In-Ceiling 6MP Night Camera with Pan/Tilt positioning (add lenses)

The Mobotix P26 series cameras are ceiling cameras with manual pan/tilt functionality providing full installation flexibility.

The P26 series are equipped with 6 Megapixel Moonlight sensor technology providing best low light performance to cope with every indoor situation.

  • Standalone: Full functionality @ zero bandwidth

  • Video Sensor: MxActivitySensor reducing false alarms

  • Event Recording: Onboard (SD card) & direct to NAS

  • MxAnalytics: Heat map & people counting

  • Alarm Notification: E-mail, FTP & VoIP (SIP)

  • Communication: Two-way audio option

  • Power: Standard PoE below 4W

  • Brilliant light sensitivity with the 6MP Moonlight Technology

HD Premium Lens options for the P26 series:

MX-B036 Ultra Wide, 103°x77°

MX-B041 Super Wide, 90°x67°

MX-B061 Wide, 60°x45°

MX-B079 Standard, 45°x34°

MX-B119 Tele, 31°x23°

MX-B237 Distance Tele, 15°x11°



Model Variants :



P26 Body Only (add lenses)

P26 Body with Audio (add lenses)

Indoors:

Indoor (IP20), 0...+40 °C

Indoor (IP20), 0...+40 °C

Lenses:
(35 mm equivalent)

Camera body only, can be equipped with lenses
B036 ... B237 (103° - 15°)

Camera body only, can be equipped with lenses
B036 ... B237 (103° - 15°)

Max. image size:

6 MP (3072 x 2048 pixels)

6 MP (3072 x 2048 pixels)

Zoom/Pan:

Continuous up to 8x Zoom + Pan/Tilt (digital)

Continuous up to 8x Zoom + Pan/Tilt (digital)

Max. framerate:

42@HD • 34@FullHD • 12@6MP

42@HD • 34@MEGA • 12@6MP

Sensitivity:

Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)

Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)

Interfaces:

Ethernet (MxRJ45), MiniUSB • with optional MxBus IO module 2 additional outlets

Ethernet (MxRJ45), MiniUSB • with optional MxBus IO module 2 additional outlets

Internal DVR:

MicroSD card (4 GB card pre-installed)

MicroSD card (4 GB card pre-installed)

Audio/Telephony:

Audio optional via ExtIO

With audio package (HD audio, integrated microphone, speaker)

Power supply:

PoE (IEEE 802.3af, class 2), consumption typ. 4 watts

PoE (IEEE 802.3af, class 2), consumption typ. 4 watts

Software functions:

Intelligent video analysis • digital zoom • programmable exposure windows • single image recording • Full
Featured Recording (MxFFS Archive, Continuous Recording, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI

Intelligent video analysis • digital zoom • programmable exposure windows • single image recording • Full
Featured Recording (MxFFS Archive, Continuous Recording, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI

Arming • Triggering:

365-day schedule • multiple events

365-day schedule • multiple events

External storage:

On PC/Server/NAS

On PC/Server/NAS

Model Numbers.:

Mx-p26A-6D
Mx-p26A-6N

Mx-p26A-AU-6D
Mx-p26A-AU-6N



Model Variants :



P26 with lens included

P26 with Audio and lens included

Indoors:

Indoor (IP20), 0...+40 °C

Indoor (IP20), 0...+40 °C

Lenses:
(35 mm equivalent)

Camera p26 with lens B016 (180°) to B237 (15°)

Camera p26 with lens B016 (180°) or B036 (103°)

Max. image size:

6MP (3072 x 2048 pixels)

6MP (3072 x 2048 pixels)

Zoom/Pan:

Continuous up to 8x Zoom + Pan/Tilt (digital)

Continuous up to 8x Zoom + Pan/Tilt (digital)

Max. framerate:

42@HD • 34@FullHD • 12@6MP

42@HD • 34@FullHD • 12@6MP

Sensitivity:

Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)

Day: 0.1 lux (t=1/60s) • 0.005 lux (t=1/1s)
Night: 0.02 lux (t=1/60s) • 0.001 lux (t=1/1s)

Interfaces:

Ethernet (MxRJ45), MiniUSB • with optional MxBus IO module 2 additional outlets

Ethernet (MxRJ45), MiniUSB • with optional MxBus IO module 2 additional outlets

Internal DVR:

MicroSD card (4 GB card pre-installed)

MicroSD card (4 GB card pre-installed)

Audio/Telephony:

Audio optional via ExtIO

With audio package (HD audio, integrated microphone, speaker)

Power supply:

PoE (IEEE 802.3af, class 2), consumption typ. 4 watts

PoE (IEEE 802.3af, class 2), consumption typ. 4 watts

Software functions:

Intelligent video analysis • digital zoom • programmable exposure windows • single image recording • Full
Featured Recording (MxFFS Archive, Continuous Recording, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI

Intelligent video analysis • digital zoom • programmable exposure windows • single image recording • Full
Featured Recording (MxFFS Archive, Continuous Recording, Full Image Recording) • Time and event driven • Week programs incl. public holidays • web functions • Logo generator • Linked event logic • Master/Slave activation • several time-driven privacy zones • Remote activation • program interface/HTTPAPI

Arming • Triggering:

365-day schedule • multiple events

365-day schedule • multiple events

External storage:

On PC/Server/NAS

PC/Server/NAS

Model Numbers.:

Mx-p26-6D016
Mx-p26-6N016
Mx-p26-6D036
Mx-p26-6N036
Mx-p26-6D061
Mx-p26-6D079
Mx-p26-6D119
Mx-p26-6D237

Mx-p26A-AU-6D016
Mx-p26A-AU-6N016
Mx-p26A-AU-6D036
Mx-p26A-AU-6N036
