- 900 MHz Frequency
- 10.6 - 11.3 dBi Gain
- Atheros MIPS 24KC, 400 MHz Processor
- 125 mph Wind Survivability

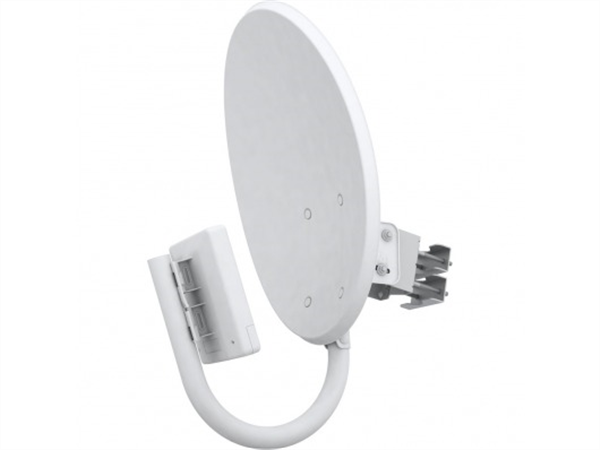

With the NBM9-KIT NanoBridge M High Performance airMAX Bridge from Ubiquiti Networks features an all-in-one design for an airMAX product functioning as a CPE (Customer Premises Equipment). The NanoBridge combines Ubiquiti's InnerFeed and airMAX technologies to create a simple, yet powerful wireless unit capable of up to 100+ Mbps real outdoor throughput and up to 18+ mi (30+ km) range.
Unlike standard Wi-Fi protocol, Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. It provides performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class.
Intelligent QoS Priority is given to voice/video for seamless streaming. Long distance capable of high-speed, carrier-class links.
High capacity and scalability.
Capable of high-speed, carrier-class links.
airOS is an intuitive, versatile, highly developed Ubiquiti firmware technology. It is exceptionally intuitive and was designed to require no training to operate. Behind the user interface is a powerful firmware architecture, which enables high-performance, outdoor multi -point networking.
• Protocol Support
• Ubiquiti Channelization
• Spectral Width Adjustment
• ACK Auto-Timing
• AAP Technology
• Multi-Language Support
Integrated on all Ubiquiti M products, airView provides advanced spectrum analyzer functionality: waterfall, waveform, and real-time spectral views allow operators to identify noise signatures and plan their networks to minimize noise interference.
Aggregate energy over time for each frequency.
Aggregate energy collected.
Energy is shown in real time as a function of frequency.
Automate airView to record and report results.
airControl is a powerful and intuitive, web-based server network management application, which allows operators to centrally manage entire networks of Ubiquiti devices.
• Network Map
• Monitor Device Status
• Mass Firmware Upgrade
• Web UI Access
• Manage Groups of Devices
• Task Scheduling
