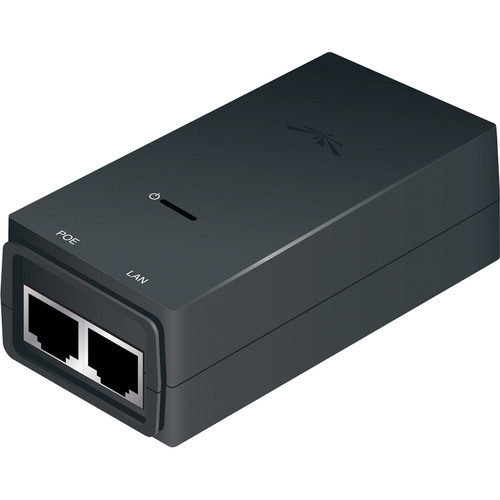

Ubiquiti POE-24-12W 0.5A PoE Injector.

This 24V PoE Adapter from Ubiquiti Networks powers a variety of Ubiquiti PoE devices belonging to the airFiber, airMAX, airVision, UniFi, and mFi series. It provides protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks.

  • Powers Ubiquiti airFiber, airMAX, airVision, UniFi, and mFi PoE devices
  • Protection against surge, clamping, maximum surge discharge, peak pulse current, and ESD attacks
  • Provides earth grounding
  • Compatible with Ubiquiti airGateway Access Points
  • Remote reset capability with reset button



Connectors

2 x RJ45 shielded ports

Clamping Protection

11 V data, 60 V power

Maximum Surge Discharge

1500 A (8/20 µS) power

Peak Pulse Current

36 A (10/1000 µS) data

Shunt Capacitance

< 5 pf data

Response Time

< 1 ns

Powering

2-Pair: Pins 4, 5 (+) and pins 7, 8 (-)

AC Connector

IEC-320 C6

Switching Frequency

50 kHz

Line Regulation

± 1%

Load Regulation

± 3%

Output Ripple

1% max

Efficiency

> 75%

Inrush Current

< 60 A peak @ 230 VAC

Input Current

0.2 A @ 240 VAC

Input Voltage

90-260 VAC @ 47-63 Hz

Output Voltage

24 VDC @ 0.5 A

Operating Temperature

0 to 40°C

Storage Temperature

30 to 70°C

Humidity (Non-Condensing)

35-95%

Dimensions

8.7 x 8.4 x 2.9 cm

Weight

92 g
