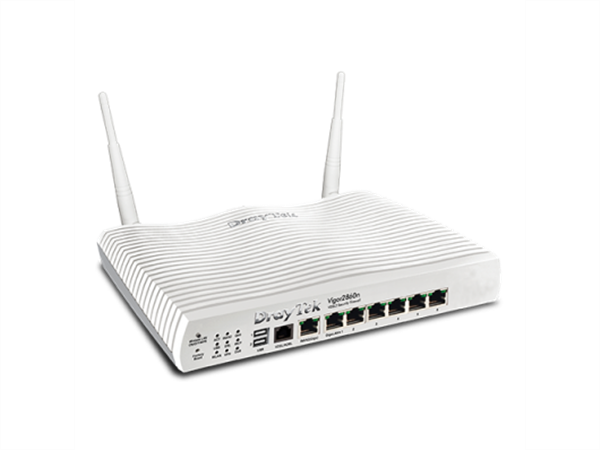

DrayTek DV2860N ADSL/VDSL/UFB Router, USB, 6xGigE LAN, VPN, QoS, VLAN, 802.11n WiFi

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • VDSL2 / ADSL2+ / UFB (Gigabit Ethernet WAN port)
  • Two USB 2.0 ports
  • 6 x Gigabit LAN ports with multiple subnets
  • Object-based SPI Firewall and CSM (Content Security Management) for network security
  • VLAN for secure and efficient workgroup management, and guest networks
  • 32 VPN tunnels with comprehensive secure protocols
  • VPN load-balancing and backup for site-to-site applications
  • Integrated IEEE 802.11n wireless Access Point
  • Embedded Central VPN Management for 8 remote Vigor routers
  • Embedded Central AP Management for multi-deployed Vigor wireless access points
  • Works with Smart Monitor Network Traffic Analyzer (30-nodes)
  • Works with VigorACS SI Central Management for multi-site deployment

VDSL2/ADSL2/2+
ITU-T G.993.2 (VDSL2)
ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B
DSL Forum Performance Speci?cation: ADSL TR-048/67, TR-100; VDSL: WT-114
Erasure Decoding, Increased Interleaver Depth and Re-transmission
EFM (IEEE 802.3 ah)
VDSL2 Profile: up to 30a


WAN Protocol
DSL (WAN-1)/Giga Ethernet (WAN-2)
DHCP Client
Static IP
PPPoE
PPTP / L2TP (WAN-2 only)
PPPoA (ADSL2 only)
802.1q Multi-VLAN Tagging
USB (WAN-3) : PPP/DHCP


IPv6
Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
Dual Stack: PPP, DHCPv6 Client, Static IPv6


USB
3.5G (HSDPA) as WAN
Printer Sharing
File System : Support FAT32 File System, Support FTP Function for File Sharing, Support Samba for File Sharing
LTE USB mobile


VPN
Up to 32 VPN Tunnels
Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
Encryption : MPPE and Hardware-based AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared Key and Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPsec
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
VPN Pass-through
VPN Wizard
mOTP
SSL VPN: 16 Tunnels
VPN Trunk (Load Balance/Backup)


Multi-WAN
Load-Balance/Route Policy(The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)
WAN Connection Failover


CSM (Content Security Management)
IM/P2P Application
GlobalView Web Content Filter (Powered by CYREN-90 )
URL Content Filter : URL Keyword Blocking (Whitelist and Blacklist), Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking, Excepting Subnets


Bandwidth Management
QoS
Guarantee Bandwidth for VoIP
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Bandwidth/Session Limitation
Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping


Network Features
Packet Forwarding Acceleration *
DHCP Client/Relay/Server
IGMP Snooping/Proxy V2 and V3
Triple-Play Application
Dynamic DNS
NTP Client
Call Scheduling
RADIUS Client
DNS Cache/Proxy and LAN DNS
UPnP 30 sessions
Multiple Subnets
Port-based/Tag-based VLAN (802.1q)
Routing Protocol:
Static Routing
RIP V2


Network Management
Web-based User Interface (HTTP/HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet/SSH)
Administration Access Control
Configuration Backup/Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP Management MIB-II
Management Session Time Out
2-level Management (Admin/User Mode)
TR-069
TR-104
LAN Port Monitoring
Support Smart Monitor (30 nodes)
Central AP Management
Central VPN Management (Up to 8 Remote Routers)


Firewall
Multi-NAT, DMZ Host, Port-redirection and Open Port
Object-based Firewall, Object IPv6, Group IPv6
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
User Management


Wireless AP
802.11n WLAN with Single Band 2.4 GHz Frequency
Wireless Client List
Wireless LAN Isolation
64/128-bit WEP
WPA/WPA2
Wireless Wizard
Hidden SSID
WPS
MAC Address Access Control
Access Point Discovery
WDS (Wireless Distribution System)
802.1x Authentication
Multiple SSID
Wireless Rate-control
IEEE802.11e: WMM (Wi-Fi Multimedia)
SSID VLAN Grouping with LAN Port (Port-based VLAN)

Hardware Interface
LAN 6 x 10/100/1000Base-Tx LAN Switch, RJ-45
WAN 1 x VDSL2/ADSL2/2+ WAN Port (WAN1), RJ-11 for Annex A/RJ-45 for Annex B
 1 x 10/100/1000Base-Tx, RJ-45 (WAN2)
USB 2 x USB Host 2.0
2 x Detachable Antennas
1 x Factory Reset Button
1 x Wireless On/ Off/ WPS Button
Temperature Operating : 0°C ~ 45°C
Storage :  -25°C ~ 70°C
Humidity 10% ~ 90% (non-condensing)
Max. Power 24 Watt
Dimension L241 * W165 * H44 (mm)
Power  DC 12V @ 1.5A ~ 2A


  1. VDSL2/ADSL2/2+
    • ITU-T G.993.2 (VDSL2)
    • ITU-T G.992.1/3/5 (ADSL1/2/2+) Annex A & Annex B
    • DSL Forum Performance Speci?cation: ADSL TR-048/67, TR-100; VDSL: WT-114
    • Erasure Decoding, Increased Interleaver Depth and Re-transmission
    • EFM (IEEE 802.3 ah)
    • VDSL2 Profile: up to 30a
  2. WAN Protocol
    • DSL (WAN-1)/Giga Ethernet (WAN-2)
      • DHCP Client
      • Static IP
      • PPPoE
      • PPTP / L2TP (WAN-2 only)
      • PPPoA (ADSL2 only)
      • 802.1q Multi-VLAN Tagging
    • USB (WAN-3)
      • PPP/DHCP
    • IPv6
      • Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
      • Dual Stack: PPP, DHCPv6 Client, Static IPv6
  3. USB
    • 3.5G (HSDPA) as WAN
    • Printer Sharing
    • File System :
      • Support FAT32 File System
      • Support FTP Function for File Sharing
      • Support Samba for File Sharing
    • LTE USB mobile Support List Please Contact support@draytek.com
  4. VPN
    • Up to 32 VPN Tunnels
    • Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
    • Encryption : MPPE and Hardware-based AES/DES/3DES
    • Authentication : MD5, SHA-1
    • IKE Authentication : Pre-shared Key and Digital Signature (X.509)
    • LAN-to-LAN, Host-to-LAN
    • DHCP over IPsec
    • IPsec NAT-traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • VPN Pass-through
    • VPN Wizard
    • mOTP
    • SSL VPN: 16 Tunnels
    • VPN Trunk (Load Balance/Backup)
  5. Multi-WAN
    • Load-Balance/Route Policy
      (The VDSL2/ADSL2+ interface, Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)
    • WAN Connection Failover
  6. CSM (Content Security Management)
    • IM/P2P Application
    • GlobalView Web Content Filter (Powered by CYREN-90 )
    • URL Content Filter :
      • URL Keyword Blocking (Whitelist and Blacklist)
      • Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
      • Excepting Subnets
  7. Bandwidth Management
    • QoS
      • Guarantee Bandwidth for VoIP
      • Class-based Bandwidth Guarantee by User-defined Traffic Categories
      • DiffServ Code Point Classifying
      • 4-level Priority for Each Direction (Inbound/Outbound)
      • Bandwidth Borrowed
    • Bndwidth/Session Limitation
    • Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping
  8. Network Feature
    • Packet Forwarding Acceleration *
    • DHCP Client/Relay/Server
    • IGMP Snooping/Proxy V2 and V3
    • Triple-Play Application
    • Dynamic DNS
    • NTP Client
    • Call Scheduling
    • RADIUS Client
    • DNS Cache/Proxy and LAN DNS
    • UPnP 30 sessions
    • Multiple Subnets
    • Port-based/Tag-based VLAN (802.1q)
    • Routing Protocol:
      • Static Routing
      • RIP V2
  9. Network Management
    • Web-based User Interface (HTTP/HTTPS)
    • Quick Start Wizard
    • CLI (Command Line Interface, Telnet/SSH)
    • Administration Access Control
    • Configuration Backup/Restore
    • Built-in Diagnostic Function
    • Firmware Upgrade via TFTP/FTP/HTTP/TR-069
    • Logging via Syslog
    • SNMP Management MIB-II
    • Management Session Time Out
    • 2-level Management (Admin/User Mode)
    • TR-069
    • TR-104
    • LAN Port Monitoring
    • Support Smart Monitor (30 nodes)
    • Central AP Management
    • Central VPN Management (Up to 8 Remote Routers)
  10. Firewall
    • Multi-NAT, DMZ Host, Port-redirection and Open Port
    • Object-based Firewall, Object IP v6, Group IPv6
    • MAC Address Filter
    • SPI (Stateful Packet Inspection) (Flow Track)
    • DoS/DDoS Prevention
    • IP Address Anti-spoofing
    • E-mail Alert and Logging via Syslog
    • Bind IP to MAC Address
    • Time Schedule Control
    • User Management
  11. Wireless AP
    • 802.11n WLAN with Single Band 2.4 GHz Frequency
    • Wireless Client List
    • Wireless LAN Isolation
    • 64/128-bit WEP
    • WPA/WPA2
    • Wireless Wizard
    • Hidden SSID
    • WPS
    • MAC Address Access Control
    • Access Point Discovery
    • WDS (Wireless Distribution System)
    • 802.1x Authentication
    • Multiple SSID
    • Wireless Rate-control
    • IEEE802.11e: WMM (Wi-Fi Multimedia)
    • SSID VLAN Grouping with LAN Port (Port-based VLAN)

* Firmware Upgradeable
