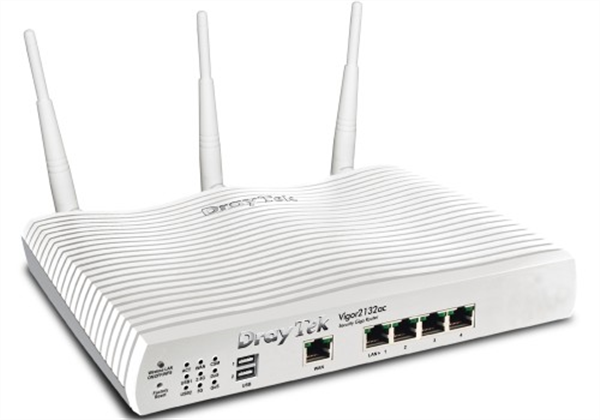

DrayTek DV2132AC Gigabit Router/Firewall for UFB, QoS, VPN, 802.11ac WiFi, 5 x Gigabit LAN Ports (1 WAN, 4 LAN)

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.

Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 1 x Gigabit Ethernet WAN interface with security object-oriented SPI Firewall and QoS
  • 4 x Gigabit Ethernet LAN ports with 30,000 NAT sessions
  • Two USB ports for USB printer, storage and USB thermometer
  • Integrated IEEE 802.11ac wireless Access Point; dual band; up to 1600Mbps throughput

Vigor2132AC router with gigabit WAN and LAN ports, USB for file/printer sharing and 2 built-in VPN tunnels.

Commtouch GlobalView Web Content Filtering subscription is also available as an extra.

Hardware Interface
4 x 10/100/1000 base-Tx LAN Switch , RJ-45
1 x 10/10/1000 WAN Port, RJ-45, 1 x 10/10/1000 WAN Port
3 x Detachable Antennas
2 x USB Host 2.0
1 x Factory Reset button
1 x Wireless on/off/WPS button

Ethernet WAN
IPv4: DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1q, Multi-VLAN Tagging
Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
Dual Stack: DHCPv6 Client, Static IPv6, PPP
DHCP Client/Relay/Server
IGMP Snooping/Proxy V2 and V3
Dynamic DNS
NTP Client
Call Scheduling
DNS Cache/Proxy and LAN DNS
UPnP 30 sessions
Port-based/Tag-based VLAN (802.1q)
Routing Protocol:
Static Routing
Up to 2 VPN tunnels
Protocol: PPTP, IPsec, L2TP, L2TP over IPsec
Encryption: MPPE and Hardware-based AES/DES/3DES
Authentication: MD5, SHA-1
IKE Authentication: Pre-Shared Key and Digital Signature (X.509)
LAN-to-LAN, Teleworker-to-LAN
DHCP over IPsec
IPsec NAT-traversal (NAT-T)
Dead Peer Detection
VPN Pass-through
VPN Wizard
VPN Backup Mode
Network Management
Web-based User Interface (HTTP / HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet / SSH)
Configuration Backup / Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP Management MIB-II (v2/v3)
Management Session Time out
2-level User Management (admin / user mode)
SNMP Management MIB-II
Multi-NAT, DMZ Host, Port-redirection and Open Port
Object-based Firewall, Object IPv6, Group IPv6
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS / DDoS Prevention
IP Address Anti-spoofing
Email Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
Network Feature
DHCP Server
Dynamic DNS
NTP Client
IGMP Proxy V2
DNS Cache / Proxy
Static / Policy Routing
WOL (Wake on LAN)
Bandwidth Management
Guarantee Bandwidth for VoIP
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-Level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Session Limitation
Bandwidth Limitation
Layer-2 (802.1p) and Layer-3 (TOS/DSCP) QoS Mapping
Wireless AP
802.11ac Wireless Access Point (300Mbps @ 2.4Ghz + 1300Mbps @ 5GHz 11ac)
Wireless Client List
Wireless LAN Isolation
64/128-bit WEP
Wireless Wizard
Hidden SSID
MAC Address Access Control
Access Point Discovery
WDS (Wireless Distribution System)
Multiple SSID
Wireless Rate-control
IEEE 802.11e: WMM (Wi-Fi Multimedia)
SSID VLAN Grouping with LAN Port (Port-based VLAN)
Printer Sharing
File System
Support FAT32 File System
Support FTP Function for File Sharing
CSM (Content Security Management)
IM/P2P Application
GlobalView Web Content Filter (Powered by CYREN)
URL Content Filter:
URL Keyword Blocking (Whitelist and Blacklist)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Excepting Subnets
