DrayTek DV2120 UFB Router/Firewall, QoS, VPN, IPv6 Support, 4 x Gigabit LAN Ports

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 1 x Gigabit WAN port
  • 4 x Gigabit LAN ports with 30,000 NAT sessions and IPv6
  • Object-based SPI Firewall, Content Security Management (CSM) and QoS
  • 2 x VPN tunnels with hardware accelerator & 2 x SSL VPNs
  • 1 x USB ports for 3.5G / 4G modem, USB disk storage & network printer
  • Support TR-069 for VigorACS SI Central Management

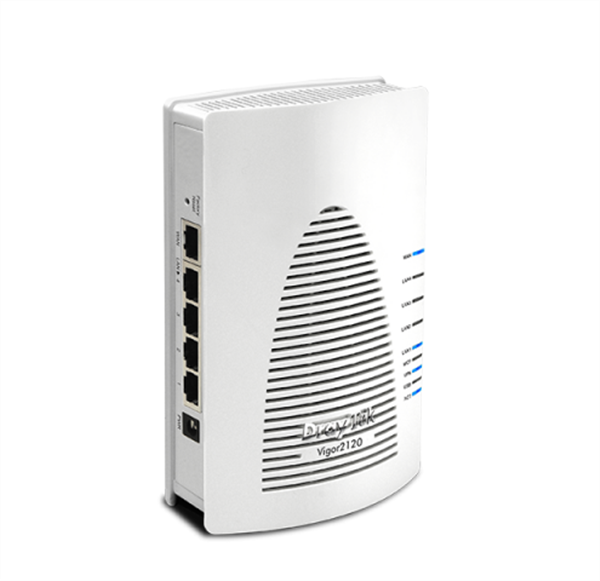

The Vigor2120 and Vigor2120n plus are broadband routers designed for super-fast broadband. They are equipped with Gigabit Ethernet WAN port and Gigabit Ethernet LAN switch for digital entertainment and fast data transmission.

With the dashboard of Web User Interface, you can promptly know the status of broadband connection and relevant management mechanism. The Vigor2120 series’s USB port can also be used to add storage memory to the unit in the form of a USB memory key or for higher capacity a USB hard drive (which may require its own power).

Hardware Interface
 1 x 10/100/1000M Base-TX WAN Ports, RJ-45
 4 Port 10/100/1000M Base-TX LAN Switch, RJ-45
 1 x USB Host 2.0
 1 x Factory Reset Button
 1 x Power on/off Button
Temperature Operating : 0°C ~ 45°C
  Storage : -25°C ~ 70°C
Humidity 10% ~ 90% (Non-condensing)
Max. Power 12 Watt
Dimension L 216.4 * W 147.8 * H 53.5 ( mm )
Power  DC 12V

WAN Protocol
Ethernet WANUSB WAN:
IPv4- DHCP Client, Static IP, PPPoE, PPTP, L2TP, 802.1p/q Multi-VLAN Tagging
IPv6- Tunnel Mode: TSPC, AICCU, 6in4, 6rd Dual Stack: PPP, DHCPv6 Client, Static IPv6
USB WAN
WAN Connection Failover
VPN
2 VPN Tunnels (including SSL VPN)
Protocol : PPTP, IPSec, L2TP, L2TP over IPSec
Encryption : MPPE and Hardware-based AES/DES/3DES
Authentication : MD5, SHA-1
IKE Authentication : Pre-shared key and Digital Signature (X.509)
LAN-to-LAN, Host-to-LAN
IPsec NAT-traversal (NAT-T)
Dead Peer Detection (DPD)
DHCP over IPSec
VPN Pass-through
VPN Wizard
Firewall
Multi-NAT, DMZ Host, Port-Redirection and Open Port
Object-based Firewall
MAC Address Filter
SPI (Stateful Packet Inspection) (Flow Track)
DoS/DDoS Prevention
IP Address Anti-spoofing
E-mail Alert and Logging via Syslog
Bind IP to MAC Address
Time Schedule Control
Content Security Management
IM/P2P Application
URL Content Filter:
URL Keyword Blocking (White List and Black List)
Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking
Excepting Subnets
GlobalView Web Content Filter ( Powered by CYREN-90 )
QoS:
Class-based Bandwidth Guarantee by User-defined Traffic Categories
DiffServ Code Point Classifying
4-level Priority for Each Direction (Inbound/Outbound)
Bandwidth Borrowed
Smart Bandwidth Limitation (Triggered by Traffic/Session)
APP QoS
Network Features
Packet Forwarding Acceleration
DHCP Client/Relay/Server
IGMP Proxy V2/V3
IGMP Snooping
Dynamic DNS
NTP Client
RADIUS Client
DNS Cache/Proxy and LAN DNS
UPnP
Bonjour service
Multi-Subnet LAN
Routing Protocol:
Static Routing
RIPv2
USB
Printer Sharing
File System : *(throughput with above 16Mbps)
Support FAT32 / FAT16 file system
Support FTP function for file sharing
Support Samba for Windows file sharing
Network Management
Web-based User Interface (HTTP/HTTPS)
Quick Start Wizard
CLI (Command Line Interface, Telnet / SSH)
Administration Access Control
Configuration Backup / Restore
Built-in Diagnostic Function
Firmware Upgrade via TFTP/FTP/HTTP/TR-069
Logging via Syslog
SNMP V2/V3
Management Session Time Out
External Device (Client Mode)
TR-069 (Compliant with VigorACS SI)
