Remotely Power Equipment through CAT5 Cable up to 100m
48VDC Auto-ranging Switching Power Supply
Complies with IEEE 802.3af POE Standard
Short Circuit, Over Current and Over Voltage Protection
Compact size – Floor / Desktop / Wall Mount
Perfcet for : Wireless Access Points and Client Devices, IP Phone and Security Camera Systems

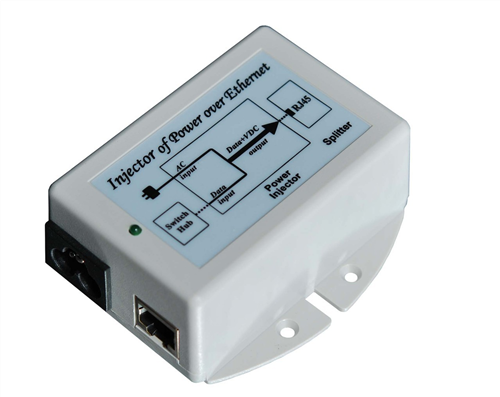

The POE-48i PoE injector gives "carrier class" performance in a low cost system. With its advanced auto-sensing algorithm it will supply power only to POE recognized end devices.
This gives an added measure of protection against damaging equipment. The overload and short circuit protection will shut down power immediately when a short circuit is detected without any damage to the POE system.
Typically in 100MB networks the maximum allowable CAT5 cable run is about 100 meters. This is not a limitation of the POE equipment but rather a limitation of the Ethernet standards.
The POE-48 is not a proprietary unit. It will function with any equipment which meets the IEEE 802.3af POE standards (such as Routerboard 220/230's, Cisco IP Phones 79xx and many other units).
Power is supplied on ethernet pins 4/5 (V+) and 7/8 (GND).
Input Voltage 90 – 264VAC @ 47 – 63Hz
Output Voltage 48VDC @ 0.35A
Input Connector 1 3 Pin Clover Leaf
Input Connector 2 RJ45 Female
Output Connector 1 RJ45 Female
