The Opengear ACM5000 enables efficient management all the infrastructure at your local or remote site — from servers through networking equipment, power supplies, security cameras, door sensors, temperature & humidity monitoring and digital I/O sensing. The SmartOOB™ enabled Opengear ACM5000 delivers secure remote monitoring, access and control of distributed networks and remote sites, delivering complete and uninterrupted out-of-band management of critical equipment. The ACM5000 deploys alongside distributed IT, network and power infrastructure, providing always-available secure remote access.
Remotely manage three serial enabled devices such as servers through networking equipment, power supplies, security cameras, door sensors, temperature & humidity monitoring and digital I/O sensing
- External Power Supply
- 1 Ethernet Port
- 4 DIO Ports
- 4 GB Internal Flash Memory
- Built-in v.92 modem
- Deploy in wiring closets, branch offices, communications cabinets and harsh remote sites
- Manage routers, switches, firewalls, PDUs, serial & USB consoles
- FIPS 140-2 validated encryption, SSL and SSH, stateful firewall, OpenVPN & IPsec
- Environmental and physical sensor alarm notification via SMS, SNMP or Nagios
- Automatically detect and recover from network outages and repair equipment faults
- Zero Touch Provisioning (ZTP) automation over the network, without manual user interaction

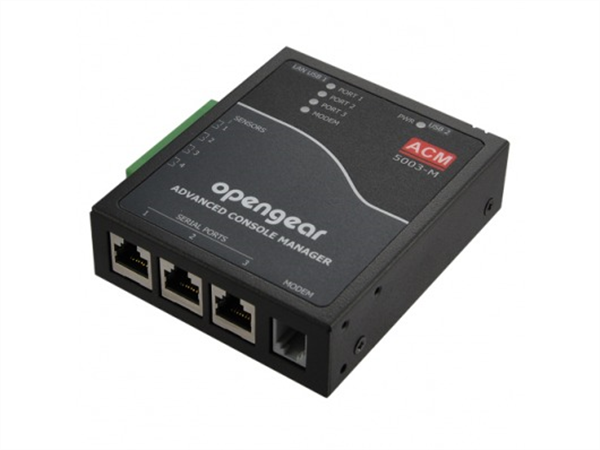

The Opengear ACM5003-M-F-E enables efficient management all the infrastructure at your local or remote site - from servers through networking equipment, power supplies, security cameras, door sensors, temperature & humidity monitoring and digital I/O sensing. The Smart OOB enabled Opengear ACM5000 remote site manager delivers secure remote monitoring, access and control of distributed networks and remote sites, delivering complete and uninterrupted out-of-band management of critical equipment.
The ACM5003-M-F-E deploys alongside distributed IT, network and power infrastructure, providing always-available secure remote access, true out-of-band management, proactive monitoring and smart automated response capabilities. The result is rapid problem resolution and a drastic reduction in the need for expensive on-site technical visits
Smart OOB for advanced out-of-band management: Maintain complete control during infrastructure fault conditions and network outages with serial, Ethernet and USB connectivity to critical infrastructure management consoles. Monitor infrastructure status as well as environmental conditions and physical sensors. Detect water ingress and physical tampering in remote cabinets with digital I/O sensor ports. Smart alert escalation through SNMP, email and direct SMS - extend the reach of Nagios or SolarWinds NMS and respond before a catastrophe. Automatically detect and recover from common causes of network outages including device misconfiguration and lock up. Smart OOBT minimizes mean-time-to-repair and increases efficiency.
Multi-vendor, multi-device management: ACM5003-M-F-E supports the widest array of network, IT and power infrastructure and vendors. Manage firewalls, switches, routers and WAN optimization via RJ45 or DB9 serial console, or Ethernet management interfaces. Vendor-neutral power management support for UPS and switched PDUs enables complete out-of-band power control and hotkey power cycling from inside the console management session.
Solutions for Cisco installs: Immediate access to any Cisco device at any time from anywhere, with ACM5003-M-F-E's integrated serial and USB console server. Simple straight-through Cat 5 cabling to Cisco-style RS-232 consoles of remote routers, switches, security appliances and other network equipment - no special cables, no adapters. Detect console warnings and errors, break into ROMmon for remote provisioning and recovery. Built in TFTP server stores and serves IOS images, running configuration and offline logs.
Comprehensive out-of-band with Smart OOB: Maintain complete control during infrastructure fault conditions and network outages with serial, Ethernet and USB connectivity to critical infrastructure management consoles. Built-in dial-in or cellular modem provides secure alternate path for trouble-shooting and repair. Monitors and controls virtually everything that affects uptime, including the physical environment. Proactive problem identification, quick notification and automated remediation reduces operating costs and improves MTBF and MTTR.
Automatic problem detection and remediation: Leverage total remote site monitoring and connectivity to detect and respond to issues before they become outages. Power cycle unresponsive equipment, back-up and restore known good device configurations. Time-based alert escalation during protracted outages reduces the cost and incidence of false alarms. Reduce mean-time-to-repair, detect and alert on faults and outages, meet SLAs and reduce downtime with remote and auto-remediation.
Strong security and authentication: Lock down management interfaces with local and remote AAA including Active Directory, Kerberos, TACACS+ and RADIUS with RSA SecurID. Encrypt sensitive management traffic with IPsec and OpenVPN. Simple, secure console access via your preferred SSH client or HTTPS AJAX web terminal. Provides persistent enforcement of corporate security policies by using secure access to all managed services and devices.
Vendor-neutral power management: Monitor UPS battery status, automate routine maintenance and load testing. Control PDU outlets via serial, USB and Ethernet. Enforce remote power permissions and map managed consoles to outlets, minimize MTTR with manual and automatic remote power control. Uniquely supports over 100 power vendors' equipment.
Cost effective, feature rich solution: Stand alone, complete remote management solution in one box. Cost effective with rapid ROI. Spec into standard network build as an inexpensive safety net. Reduce IT costs by equipping central operations teams with always-available, low-level remote control of IT, network, UPS and PDU systems. More features out of the box, with extensible root-level scripting access and custom development kit for specialized applications.
Full life cycle remote management and best practices: Onboard storage accelerates initial network provisioning while out-of-band access enables remote maintenance and disaster recovery. Extend best practice management from the data center and NOC to remote sites, with per-port user & group AAA, access logs & audit trail.
Remote management that scales: Accelerate deployment, increase efficiency and reduce errors with Zero Touch Provisioning (ZTP) enabling automated provisioning and configuration of newly deployed Opengear appliances over the network, without manual interaction. Extend ACM5000 with Opengear Lighthouse central management to manage up to 5,000 remote installs.
3 RJ45 RS-232 serial ports (50 to 230,400bps), Cisco pinout 1 RJ45 10/100Base-T Ethernet port
1 external USB 2.0 port. Host type A socket
Rack mount brackets
8 way pluggable terminal block
4 TTL level digital I/O ports (DIO) 5V max @ 20mA (supports external water/smoke/motion dry contact sensors)
RJ11 Phone socket for modem
Internal 4GB USB flash memory
External power source +9V to 30V DC, Also supplied with 110-240V AC to 12V DC external power adapter (for operations up to 50ºC only) External DC operation (+9V to +30V) on pluggable terminal block Additional transient reverse voltage protection on external DC power Consumption: Less than 6W
Dimensions and Weight:
4 x 3.5 x 1 1/8 in - 12 oz
10.2 x 8.8 x 2.8cm - 340 gm
Ambient operating temperature: 5°C to 50°C, 41°F to 122°F
Non-operating storage temp: -30°C to +60°C, -20°F to +140°F
Humidity: 5% to 90%
Internal temperature sensor
FCC Part 15 Subpart B Class A Radiated Emissions 30MHz - 1000MHz
ICES-003 Issue 4 February 2004 Class A Radiated Emissions 30MHz - 1000MHz
AS/NZS CISPR 22: 2004 Class A Radiated Emissions 30MHz - 1000MHz
EN55022: 1998 + A1: 2000 + A2: 2003 Class A Radiated Emissions 30MHz - 1000MHz
Serial Port: 4kV ESD protection on RS-232 and RS-422/485 transceivers Ethernet Port: 1500V AC isolation shielded with shield connected to chassis ground for signal integrity and ESD protection
EN55024: 1998 +A1: 2001 +A2: 2003
IEC61000-4-2: 1995 ESD 8kV Air Discharge (Direct), 4kV Contact Discharge (Direct/Indirect)
IEC61000-4-3: 1995 Radiated Immunity 3.0V/m, 1KHz AM Sine Wave at 80%
IEC61000-4-4: 1995 EFT/Burst 1.0kV Power Lines, 0.5kV I/O Lines
IEC61000-4-5: 1995 Surge Immunity 1.0kV Common Mode, 1.0 kV Differential Mode
IEC61000-4-6: 1996 Conducted Immunity 3.0Vrms, 80% AM Modulated (1KHz)
IEC61000-4-11: 1994 Voltage Dips and Interrupts (>95%,0.5 periods), (30%,25 periods), (>95%,250 periods)
AC-DC (12V) adapter - 100,000 hours
(-48V - 12V) adapter - 90,000 hours
DC plant power - 120,000 hours
Other Agency Approvals:
CE, UL 1950, TUV, C-Tick, RoHS compliant, Security features to support NERC CIP standards, FIPS 140-2 Validated Module Certificate #1051
Memory & CPU:
250Mhz ARM (Micrel KSZ8692) 64MB DDR 32-bit RAM, 16MB Embedded Flash and 4GB Internal USB Flash
Linux with source code access and Custom Development Kit (CDK)
Security & Authentication:
IPSec & OpenVPN, SSL tunnels, Secure Shell (SSH V2), TACACS+, Kerberos, RADIUS and LDAP authentication, PAP/CHAP authentication (dial-up), Dial-back support, Local authentication, System event syslog, Authenticated NTP
Stateful firewall, DHCP server, DDNS, Failover, Port forwarding, IP filtering with access control lists
HTTPS & SSH console, Nagios NSCA & NRPE, SNMP, TFTP & FTP server, Password access control, IP service port control, AJAX web terminal, Auto Response
