Aten SN3101 Serial over IP (Console Server), RS-232, RS-422 and RS-485

Serial over IP (Console Server), RS-232, RS-422 and RS-485

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

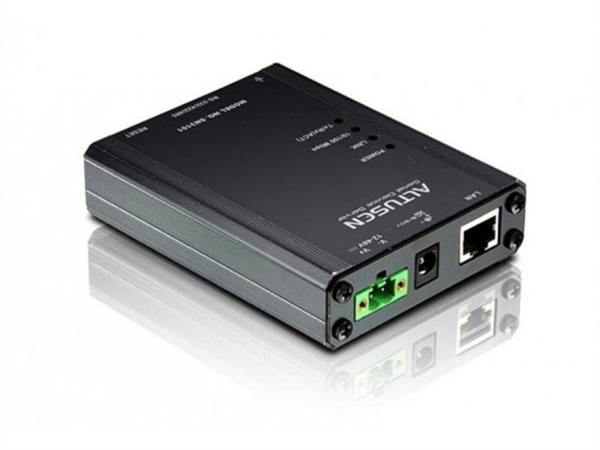

The SN3101 One Port Serial Device Server from Aten is a 3-in-1 Serial Device Server, which supports RS-232, RS-422 and RS-485 data transfers, and provides Ethernet connectivity for a wide variety of serial devices used in commercial applications. These include industrial control, data acquisition, access control, environment monitoring, banking, telecoms, remote site management, etc. This SN3101's total serial data transfer system transforms the capability of legacy serial devices, and allows them to take advantage of the speed and reliability of today's modern communication techniques.

  • Provides over IP access for industrial serial devices
  • Software selectable RS-232/422/485 3-in-1 serial port
  • Built-in 15KV ESD serial port protection
  • Maximum baud rate: 460 Kbps
  • Wide range of versatile serial operation modes - Console Management, Real COM, TCP Server, TCP Client, UDP, Modbus, Serial Tunnel and Virtual Modem
  • High security via 128-bit SSL encryption for serial data transmission
  • Redundancy support via multiple simultaneous Real COM, TCP Server, and TCP Client connections
  • 64 Kbyte port buffer prevents data loss when the network is down
  • Real COM driver for Windows 2000/XP/2003/Vista
  • Fixed TTY driver for Linux
  • Modbus Ethernet-to-Serial support
  • Modem emulation enables existing modem-based applications to make connections over IP networks
  • Virtual Terminal support (VT320, VT52, VT100, VT220)
  • System configuration via Web Console (HTTP/HTTPS), Telnet/SSH Console and Windows utility
  • Backup/restore and firmware upgrading via Web Console(HTTP/HTTPS) and Windows utility
  • Easy-to-use Windows utility (2000/XP/2003/Vista) for auto discovery, multiple device setting and monitoring
  • Centralized external authentication support for RADIUS, LDAP(S), MS Active Directory
  • SNMP MIB II and RS-232 MIB for network management
  • SMTP and SNMP trap event notification
  • Choice of power input: AC-DC adapter or DC direct
