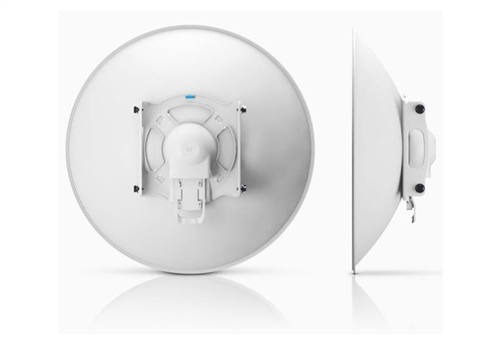

Ubiquiti RD-5G30-LW. 5GHz Rocket Dish, 30dBi with rocket kit.

Pair a RocketDish™ antenna with a Rocket™ basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish is available in the following frequency models: 2.4 GHz, 3 GHz and 5 GHz. The RocketDish antenna delivers 2x2, dual-polarity performance. On the right is one example of how the RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX® Sector with Rocket delivers bandwidth to the ISP’s customers.

  • The RD-5G30-LW features the same gain as the RD-5G30 and adds the following advantages:
  • Lightweight yet robust components lessen the load
  • The extended depth of the dish Reflector rejects noise interference in co-location deployments
  • The design of the mounting bracket allows for ease of installation on a pole or tower

Frequency Range : 5.1 - 5.9 GHz
Gain : 30 dBi
Polarisation : Dual-Linear
Cross Polarisation : 35 dB Min.
Max VSWR 1.6:1
Vertical Beamwidth : 5.8° (3 dB)
Horizontal Beamwidth : 5.8° (3 dB)
Connector Type : (2) RP-SMA Female
Dimensions : 650 x 650 x 386 mm
Radome Sold Separately (ISO-BEAM-620)
Wind Loading : 200km/h
Pole Mount Diameter : 38 - 75mm
