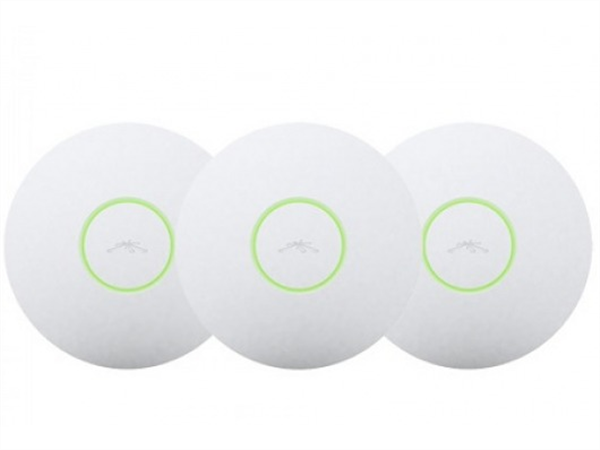

Ubiquiti UAP-LR-3 3-pack of UniFi 802.11b/g/n 500mW Long Range Indoor Access Point, PoE included

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

3 Pack of Ubiquiti UAP-LR, 500mW 2x2 MIMO 300Mbps (2.4GHz) 802.11n Long Range Managed Indoor Access Point

  • 802.11n MIMO Technology
  • 802.11 b/g/n Wi-Fi Standard
  • Range of up to 200m & Speed of 300 Mb/s
  • UniFi Controller Software
  • 1 x 10/100 Ethernet port
  • Integrated 3 dBi Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • 100+ Concurrent Clients each

The 3-pack UniFi Access Point Long Range Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. UniFi AP-LR has a long range of up to 600'. It also offers 802.11n MIMO technology, with speeds of up to 300 Mb/s. UniFi Access Point (AP) indoor model has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware. UniFi AP-LR system includes UniFi Controller software. The software installs on PC, Mac, or Linux machines within the network and is easily accessible through a standard web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system.

Time Saving and Cost Effective
UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-premise PC, Mac, or Linux machine, in a private cloud, or using a public cloud service.
Wi-Fi 802.11n MIMO Technology
The UniFi AP-LR features Wi-Fi 802.11n MIMO technology, capable of gigabit speeds and ranges up to 600'.
Expandable
Build wireless networks as big or small as needed. Start with one or more, or expand to thousands if necessary, while maintaining a single unified management system.

UniFi Controller
UniFi Controller Software
Install, configure, and manage UniFi AP with the intuitive and easy-to-learn UniFi Controller user interface. Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
Guest Portal/Hotspot Support
Easy customization and options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. UniFi AP includes Hotspot functionality. It includes built-in support for billing integration using major credit cards and built-in support for voucher-based authentication. It also includes built-in Hotspot Manager for voucher creation, guest management, payment refund, full customization, and branding of Hotspot portal pages.
Multi-Site Management
A single UniFi controller running in the cloud can manage multiple sites, multiple distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator read/write and read-only accounts.
WLAN Groups
The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Zero Handoff Roaming
With Zero Handoff Roaming, mobile users can roam anywhere and maintain their connections as they switch to the nearest AP. Zero Handoff Roaming makes multiple APs appear as a single AP, so it can work with any client and requires no interaction from the client device.
Maps
Upload map images of your location for a visual representation of each wireless network.
Statistics
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.
Access Points (AP)
Install, configure, and manage all APs from a single location.
Extend Your Coverage
With the UniFi Controller software running in a NOC or in the cloud, administrators can extend and centrally manage wide areas of indoor and outdoor coverage, using any combination of UniFi APs.
Easy Mounting
Sleek wall or ceiling mount design (all accessories included).
Design
It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.
Power over Ethernet (PoE)
UniFi AP-LR includes Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to the device.

Networking Interface

1 x 10/100 Ethernet port

Buttons

Reset

Antennas

Integrated 3 dBi Omni (supports 2 x 2 MIMO with spatial diversity)

Wi-Fi Standard

802.11 b/g/n (2.4 GHz)

Power Method

Passive Power over Ethernet (12 - 24 V)

Power Supply

24 V, 0.5 A PoE (adapters included)

Maximum Power Consumption

6 W

Maximum TX Power

27 dBm

BSSID

Up to 4 per radio

Power Saving

Supported

Wireless Security

WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

Mounting

Wall/Ceiling (kits included)



Advanced Traffic Management

VLAN

802.1Q

Advanced QoS

Per user rate limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

100+ on each AP



Supported Data Rates (Mb/s)

802.11n

6.5 to 300 Mb/s (MCS0 - MCS15, HT 20/40)

802.11b

1, 2, 5.5, 11 Mb/s

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mb/s



Environmental

Operating Temperature

-10 to +70° C

Operating Humidity

5 - 80% (non-condensing)



Standards and Certifications

Certifications

CE, FCC, IC



Physical Characteristics

Dimensions (each)

20.00 x 20.00 x 3.65 cm

Weight (each)

290.00g without mounting kits
430.00g with mounting kits
