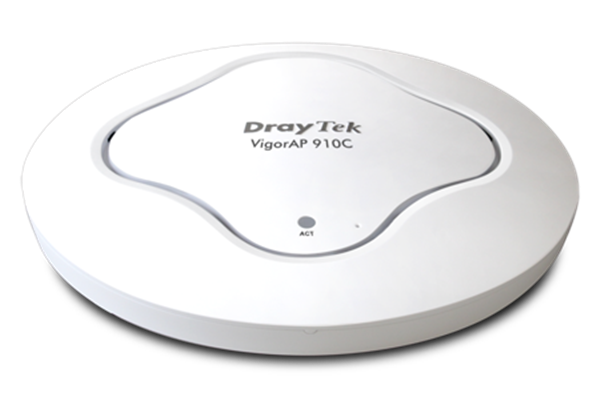

DrayTek DAP910C 866mbps 802.11ac wireless access point, ceiling mount, Gigabit PoE PD

SnapperNet is a distributor and does not sell directly.
Please feel free to contact us and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • Business-class wireless access point
  • Ceiling mounted with concealed cable entry
  • Can also be wall mounted
  • 802.11ac 866mbps Wireless (5Ghz)
  • Simultaneously supports 802.11n 300mbps (2.4Ghz)
  • Supports 5Ghz extended channels (36-64 & 100-140)
  • Centrally managed or standalone operation
  • Can be powered by supplied PSU or standard 802.3af PoE (Power-over-Ethernet)
  • Repeater/Bridge/Access Point
  • Time-Scheduled Operation (multiple schedules)
  • Wireless Client Isolation
  • Bandwidth management per SSID
  • 802.1q VLAN Tags with four SSIDs
  • MAC Address Filtering
  • Radius / WPA User Authentication
  • 802.1x User Authentication
  • WDS (Wireless Distribution System)
  • WMM (Wireless MultiMedia)
  • WPS - WiFi Protected Setup

The DrayTek Vigor AP910c is a wireless access point which can be operated in standalone or centrally managed/monitored mode (with the use of a central DrayTek management product - see later).  The AP910c is a high specification professional access point providing reliable and flexible coverage to all manner of applications.  A vast array of security and management features helps the AP-910c improve and protect flexibility and integrity of your wireless LAN.  The Vigor AP910c is ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS repeater features.

The ceiling format of the unit means that it can provide unobstructed coverage to the area around it and aesthetically blends into any home or office environment thanks to its shape, size and hidden cable entry.  The AP910c can also be wall mounted. For ceiling mounting, a circular mounting plate (included with the unit) is fitted and then the AP-910c is attached.  The AP-910c can be used together with our other access points (AP710, AP810 and AP910c). For suspended ceilings, additional mounts are included to attatch the the ceiling T-Bars

Physical Interfaces/Controls:
LAN : 1 x Gigabit Ethernet, RJ45 (accepts PoE Power)
Factory Reset Button (recessed)
DC Power Socket
Wireless LAN Compatibility:
IEEE 802.11ac
802.11a / b / g / n
Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation
Extended 5Ghz Band - Channels 36-140 (Feature estimated Autumn 2015)
DFS/TPC Support
Security Features:
Wireless Encryption : WPA2 (802.11i) Encryption
Also supports WPA/WEP (Not recommended)
User Authentication : 802.1x (using built-in or external Radius Server) (MD5/PEAP Modes)
Wireless Client Isolation
Hidden SSIDs (Selectable)
WPS - WiFi Protected Setup
MAC Address Filtering / Control (ACL)
Operational Modes (2.4Ghz band)
802.11b, 802.11g, 802.11n
Access Point
Station Infrastructure
AP Bridge Point-to-Point
AP Bridge Point-to-Multipoint
AP Bridge WDS
Universal Repeater
Operational Modes (5.8Ghz band)
802.11a / 802.11n / 802.11ac
Channels 36-140 with DFS/TPC (Feature estimated Autumn 2015)
Access Point
Universal Repeater
Wireless Control Features:
Up to 64 Wireless Clients Supported (per band)
MAC Address Control
Wireless Client Status List in WUI
Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz)
WMM (Wireless MultiMedia)
Built-in DHCP server & client
802.1q VLAN
Management:
Web Interface (HTTP/HTTPS*)
TR-069 Control (For Vigor-ACS-SI or other TR-069 platform)
CLI (Command Line Interface) - Telnet
Firmware upgrade by TR-069/HTTP
SNMP V2 / 2c / 3*
Central AP Management (from compatible DrayTek router/controller)
Power, environmental & Physical:
Temperature Operation : 0° C to 40° C
Humidity Requirements: 10% to 90 % (Non-condensing)
Physical Dimensions: 162mm (wide/diameter) x 42mm (high)
Weight : 0.4kg (main unit, including Aerials)
Ceiling or Wall Mountable (requires rear cable entry)
Pack Contents : AP-910C main unit, ceiling mount, AU/NZ PSU, quick start guide
Power : 12VDC via AC/DC PSU (supplied) or 802.3af PoE
