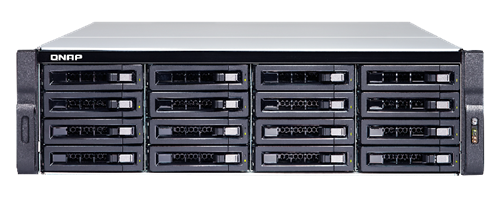

QNAP TDS-16489U-SB2 16 (+4) Bay TurboNAS, SAS 12G, SAS/SATA 6G, Xeon E5-2620 v3 2.4GHz

16 (+4) Bay TurboNAS, SAS 12G, SAS/SATA 6G, Xeon E5-2620 v3 2.4GHz
  • Xeon E5-2630 v3 2.4GHz
  • 128GB RAM
  • 4 x 10Gig Ethernet

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

QNAP furthers its innovation into the field of business servers and introduces the TDS-16489U, a powerful Double Server that integrates an application server and storage server into one chassis. The TDS-16489U is powered by dual Intel® Xeon® E5 processors with RAM expandable to 1TB and with a server-grade hardware design that optimizes mission-critical tasks and boasts unrivaled performance for Big Data computing.

Coupled with Auto Tiering support, 12Gb/s SAS drives and 40GbE readiness, the TDS-16489U performs as an efficient, scalable and unrivaled unified and tiered storage solution for businesses to fulfill cross-platform file sharing, backups, iSCSI & virtualization applications, and everyday practical business needs.

• Cost-efficient Double Server for hosting virtual machines and accommodating virtualization storage in one box
• Excellent performance: 3,800+ MB/s throughput and 260,000+ IOPS
• Server-grade hardware design: dual processors, triple SAS controllers, quad SFP+ 10GbE ports, 10/40GbE slot, PCle SSD NVMe, IPMI and GPU for virtualization
• Qtier Technology driving Auto Tiering for optimal storage efficiency
• NAS and iSCSI/IP-SAN storage fulfilling data storage, backup, sharing and disaster recovery
• Scalable design, up to 1,152 TB total capacity

E5-2630 v3 8-core 2.4 GHz processor x2

128GB RDIMM DDR4 RAM
4 x 10GbE SFP+ ( 10 Gigabit Ethernet Ports)
Drive Bays : Front: 16 x 3.5-inch, Rear: 4 x 2.5-inch
4 x PCIe Slots
Slot 1: PCIe Gen 3 x16
Slot 2: PCIe Gen 3 x8
Slot 3: PCIe Gen 3 x8
Slot 4: PCIe Gen 3 x8
3U Rackmount

Model Name
• TDS-16489U-SB2 (E5-2630 2.4GHz 8-core processor x2, 128GB DDR4 RDIMM)

CPU:
• Intel Xeon 8-core Processor E5-2630 v3 (20M Cache, 2.40 GHz)

Memory:
• System memory: RDIMM / LRDIMM
• Total memory slots:16

USB:
• 4 x USB 3.0 port

Hard Drive:
• 16 x 3.5-inch SAS (12Gbps/6Gbps), SATA (6Gbps/3Gbps) hard drive, or 2.5-inch SAS/SATA SSD
• 4 x 2.5-inch SAS (12Gbps) SSD, or SAS/SATA (6Gbps/3Gbps) SSD

Maximized Raw Capacity:
• 128 TB

Hard Drive Interface:
• SAS 12Gb/s, backward compatible with SAS/SATA 6Gbps

10/100/1000 Mbps LAN Port:
• 2

10Gbps LAN Port:
• 4 x SFP+ Intel XL710

PCIe Slot:
• 4 (3 x PCIe Gen3 x8, 1 x PCIE Gen3 x16)

Form Factor:
• 3U, rackmount

Dimension:
• 130.8 (H) x 444 (W) x 744 (D) mm

Weight:
• Net weight (NAS only): 22.42 kg/ 49.43 lb
• Gross weight (with packing and accessories): 30.19 kg/ 66.56 lb

Sound Level*:
• Sound pressure (LpAm) :37.8 dB(A)

Power Consumption:
• Sleep mode: 254.21 W
• In Operation: 362.86 W

Power Supply:
• 650W (Redundant power)

Fan:
• 4 x 6cm smart cooling fan (12V DC)
