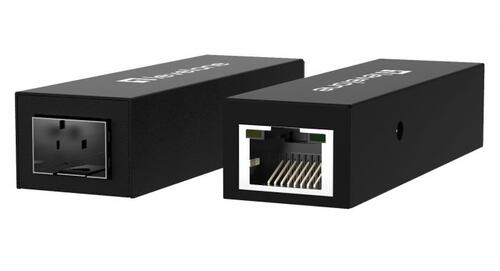

LevelOne GVT-1001 Ultra-Slim RJ45 to SFP Gigabit Media Converter

Ultra-Slim RJ45 to SFP Gigabit Media Converter

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:
  • 10/100/1000Base-T to 1000Base-X
  • SFP slot for flexible long distance transmission
  • USB powered for easy portability or used with the included power adaptor
  • Plug-and-Play and auto-MDI/MDIX
  • Lower jitter and Lower latency
  • Ultra low power dissipation<1.2W
  • Support Jumbo frame 10Kbytes
  • Supports watchdog, automatically reboot

The GVT-1001 is the ultra-slim plug-and play 10/100/1000Base-T to 1000Base-X media converter which is designed for applications where compact size, light weight and low power are critical requirements. It can be easily installed in tight places or conveniently slip into any pocket or laptop carrying case for easy portability with its ultra-slim size and super light weight.

This Ultra-Slim RJ45 to SFP gigabit media converter can be USB powered by USB 1.0 or 2.0 port, which is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.  So this ultra-slim media converter is an ideal solution for fiber-to-the-laptop where it needs Gigabit connectivity but local power isn’t available.

For applications  not utilizing USB power, this converter is also available with a USB power adapter, providing compatibility with electrical outlet types. This media converter supports  Jumbo frame 10 Kbytes and watchdog function, it can automatically reboot if frozen.

Features

Fanless
Auto-MDI/MDIX
Auto-Negotiation
MTBF : 100,000 hrs
Data rate Gigabit Ethernet
Fiber Optical Mode Both
Media Interface RJ45 to SFP

Physical Specifications
Dimensions (W x D x H) 23.3 x 79 x 18.5 mm
Product weight (kg) 0.056
System specifications
Indicators Link/Active
• 10/100M link indicator
• 1000M link indicator
Jumbo frame (KB) 10
Mount Desk mount
Port Configuration 10/100/1000Base-T to 1000Base-X
Power consumption <1.2 Watt
Power input DC 5V, 1000mA
Power supply USB Power Adapter
Standards  IEEE 802.3 10/100/1000 BASE-T, IEEE 802.3z 1000BASE-X

Package Contents

GVT-1001
USB power adapter with power cable
Quick Installation Guide
Declaration of Conformity
