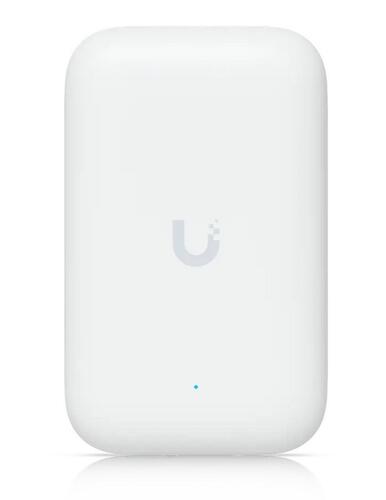

Ubiquiti UK-ULTRA Swiss Army Knife Ultra, Outdoor-Rated Wi-Fi 5 Access Point

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Incredibly compact, indoor/outdoor AP with versatile mounting options and long-range external antenna support.

Mechanical



Dimensions

137 x 84 x 34 mm

Weight

173 g

Enclosure material

UV-stabilized polycarbonate

Mount material

Polycarbonate, SGCC steel, plastic

Pole mount diameter

1~2" on pipe outer diameter

Wind survivability

33.2 N at 200 km/h

Weatherproofing

IPX6

Hardware

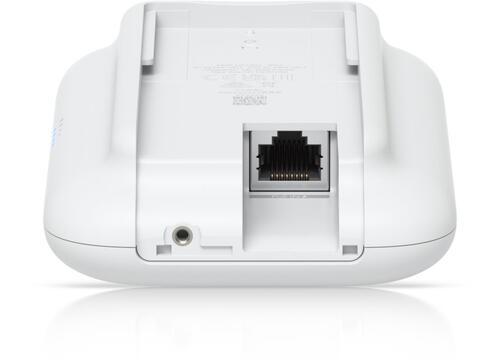

Networking interface

(1) GbE RJ45 port

Management interface

Ethernet

Power method

PoE

Power supply

UniFi PoE Switch

Supported voltage range

44—57V DC

Max. power consumption

8W

Max. TX power
2.4 GHz
5 GHz
6 GHz


20 dBm
20 dBm

MIMO
2.4 GHz
5 GHz
6 GHz


2 x 2
2 x 2

Throughput rate
2.4 GHz
5 GHz
6 GHz


300 Mbps
866.7 Mbps

Antenna gain
2.4 GHz
5 GHz
6 GHz


4.7 dBi
6 dBi

Antenna

(1) Internal antenna
(2) RP-SMA connectors for optional external antennas

LEDs

(1) Power: white/blue
(4) Mesh signal: blue

Button

Factory reset

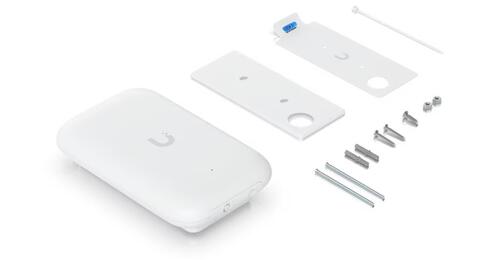

Mounting

Wall, ceiling, pole (Included)

Operating temperature

-40 to 60° C (-40 to 140° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software



WiFi standards

802.11a/b/g/n/ac

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

200+

Supported Data Rates



802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n (WiFi 4)

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
