SOPHOS AP420A00ZZPCNP AP6 420 Indoor Access Point, 2x2:2 dual radio, 1 x GE LAN

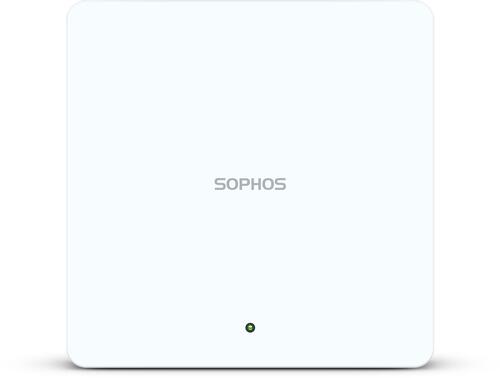

Sophos AP6 420 Indoor Access Point
- 2x2:2 dual radio (1 x 2.4 GHz, 1 x 5 GHz)
- Internal antennas
- GigE LAN interface
Sophos AP6 Series Access Points
The AP6 Series offers a range of models to suit many different environments. With four indoor models and one IP67-rated outdoor model, they are ideal for both new and existing customers to refresh their Wi-Fi infrastructure as part of a network upgrade or vendor consolidation project. Managed through Sophos Central, you have a single point of management and monitoring for all AP6 access points.
All AP6 models (except the AP6 420) have at least one 2.5G interface for faster LAN connectivity. When combined with the Sophos range of 2.5G switches, you can unlock faster speeds across your entire network. This helps to prevent performance bottlenecks and gives your wireless users an overall better Wi-Fi experience.
AP6 Model |
AP6 420 |
AP6 420E |
AP6 840 |
AP6 840E |
AP6 420X |
---|---|---|---|---|---|
Indoor/Outdoor |
Indoor |
Indoor |
Indoor |
Indoor |
Outdoor |
WLAN Standard Bands |
Wi-Fi 6 2.4 GHz, 5 GHz |
Wi-Fi 6/Wi-Fi 6E 2.4 GHz, 5 GHz, 6 GHz |
Wi-Fi 6 2.4 GHz, 5 GHz |
Wi-Fi 6/Wi-Fi 6E 2.4 GHz, 5 GHz, 6 GHz |
Wi-Fi 6 2.4 GHz, 5 GHz |
Management |
Sophos Central: Provides a single point of management and monitoring for all AP6 access points. Local Management: Offers a local administrator interface available for individual access point management. |
||||
Power over Ethernet |
802.3at (PoE+) Suitable PoE+ injector or switch available for separate purchase |
802.3at (PoE+) Suitable PoE+ injector or switch available for separate purchase |
802.3at (PoE+) Suitable PoE+ injector or switch available for separate purchase |
802.3bt (PoE++) CS210-8FP switch available for separate purchase, PoE++ injector planned |
802.3at (PoE+) Suitable PoE+ injector or switch available for separate purchase |
Antennas |
internal omnidirectional |
internal omnidirectional |
internal omnidirectional |
internal omnidirectional |
external omnidirectional |
AP6 Series Support
There are two different ways to manage the AP6 Series.
1. A local user interface via your browser to manage a single AP on site. Included in hardware purchase.
2. Sophos Central. A single cloud platform to remotely manage all of your Sophos solutions. Requires Support subscription per AP.
A Support and Services subscription per AP entitles you to Sophos Central management, firmware updates, Advanced RMA, and 24x7 multi-channel support.
Optional Accessories
We have a number of options available to cover different deployment scenarios.
Mounting Kits
Kits for flat-ceiling, plenum, and suspend mount.
Optional Antennas
120 degree sector antenna and 30 degree directional antennas available for AP6 and APX outdoor models.
POE Injectors
PoE, PoE+ and PoE++ injectors are currently available.
Power Supply
External supply available for AP6 420 and APX 120.
Sophos Switch
The ideal option to power your Sophos access points and other PoE-capable devices.
Additional information about AP6 Series access points:
- Sophos Wireless Overview: https://www.sophos.com/en-us/products/secure-wifi
- Sophos Wireless Features: https://www.sophos.com/en-us/products/secure-wifi/features
- Sophos Wireless Compare Models: https://www.sophos.com/en-us/products/secure-wifi/tech-specs
- Sophos Wireless datasheet: https://assets.sophos.com/X24WTUEQ/at/mhxw3f337crpws9r5p748t/sophos-wireless-ds.pdf
- AP6 Series Technical Documentation: https://doc.sophos.com/nsg/wifi/help/en-us/index.html
- How to Buy: https://www.sophos.com/en-us/products/secure-wifi/how-to-buy
