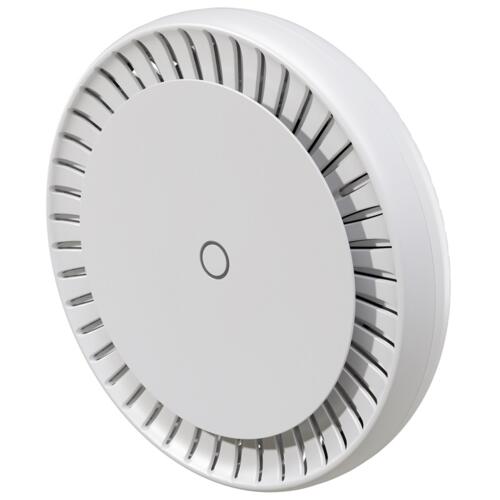

MikroTik CAPGI-5HAXD2HAXD cAP ax Dual-band Wi-Fi 6 2x2 802.11ax Wireless AP, Ceiling/Wall Mount

MikroTik cAPGi-5HaxD2HaxD WiFi 6 2x2 802.11ax Wall/Ceiling mount Wireless Access Point. When it comes to wireless network in the office, you can’t afford to cut corners and risk inhibiting your team’s performance. You need excellent coverage throughout the premises. You need a device that can handle a large number of clients. You need a reliable, flexible, cost-effective solution: the cAP ax!

Both open office and cubicle layouts usually encounter a variety of network issues: signal gets absorbed, reflected, it becomes unstable. Mirrors, tinted glass, TVs, metal file cabinets – all sorts of things can get in the way. Our solution is simple, effective, and elegant: let your access point rise above all the obstacles! In other words, a ceiling access point is a great way to prevent signal loss in large, crowded areas with many obstacles.

There is another benefit to this form-factor: cAP ax remains hidden in plain sight, attracting less unwanted attention than a smoke sensor. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing-fast wireless connection!

With the Generation6 802.11ax WiFi6 wireless standard, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum, if we compare it to the previous generations! But what’s more important than speed is the stability. Our latest AX devices can withstand and navigate even the toughest wireless interference scenarios, offering the most stable and uninterrupted signal to date!

cAP ax features a modern quad-core CPU running at 1.8 GHz, NAND storage, and a gigabyte of RAM. Enough to harvest the full potential of the most powerful networking software on the market – RouterOS v7! Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels – cAP ax can do it all!

Compared to the previous generation, cAP ax offers multiple enhanced authentication types: OWE, WPA3-PSK, WPA3- EAP, and 802.11r roaming.

10/100/1000 Ethernet ports 2
Number of 1G Ethernet ports with PoE-out 1
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax, WiFi 6
Antenna gain dBi for 5 GHz 5.5
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax WiFi 6
Antenna gain dBi for 2.4 GHz 6
RouterOS license 4
Operating System RouterOS (v7 only)

Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 18-57 V
Max power consumption 28.2 W
Max power consumption without attachments 9 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 18-57 V
PoE-out port Ether2
PoE out Passive PoE up to 57V
Total output power 19.2W

AKA RBCAPGI-5HAXD2HAXD
