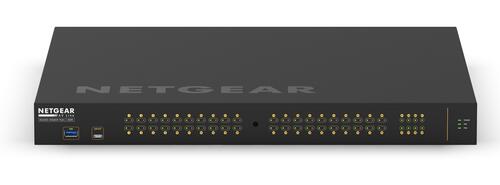

NETGEAR GSM4248PX AV Line Managed PoE+ Switch, 40x1G PoE+, 8xSFP+ (M4250-40G8XF-PoE+)

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

This item is not normally held in stock. We’ll order it in on request. Please contact us for estimated delivery time
In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

Switching engineered for 1G AV over IP with rear-facing ports ensuring a clean integration in AV racks. Pre-configured for out of the box functionality!

POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.

Primary Port Speed : 1 Gigabit
Number of Ports : 48 (40x 1G PoE+, 8x SFP+)
PoE Ports / Budget : 40 PoE+ (30W/port), 960W Budget
IGMP Support : Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support : Yes, up to 12kb
AVB Support : Yes. Electronic license required, activation key sent via email (AVB4248PX-10000S).
Acoustics : Fanless or 59dB@25ºC
Power Consumption : With PoE: 1197W/4086.56Btu/hr
Without PoE: 89.2W/304.53Btu/hr
Standby without any port connection: 74.5W/254.34Btu/hr
Third party support : Domotz

Dimensions (WxDxH) : 440 x 400 x 43.2 mm
Weight : 6.31 kg (13.91lb)

WHAT'S IN THE BOX
M4250-40G8XF-PoE+ (GSM4248PX)
Power cord(s)
Console USB Type-C and RJ45-DB9 cables
Rack-mounting standard brackets
Longer brackets for recessed mounting
Rubber footpads for tabletop installation
Installation guide









AVline
