MikroTik CCR2004-16G-2S+PC Router with 16x Gigabit Ethernet ports, 2x10G SFP+ and Passive Cooling
With the new CCR2004, you can take your office network to the next level. Without breaking the bank.
Note this model does not include a power supply for AU/NZ - supports 48V DC input via terminal and standard 2.1mm.
MikroTik CCR2004-16G-2S+PC Router with 16x Gigabit Ethernet ports, 2x10G SFP+ and Passive Cooling. Up to 300% faster than the previous CCR1009 routers - in a blissful silence! Luxury you deserve for the price you can afford. 16x Gigabit Ethernet ports, 2x10G SFP+ cages.
Like the other models in CCR2004 series, this CCR also features the Amazon Annapurna Labs Alpine v2 CPU with 4x 64-bit ARMv8-A Cortex-A57 cores. While this CPU is running at 1.2 GHz, the router can be 3x as fast than the previous generation CCR’s. This is the silent powerhouse. Enjoy all the power of a real CCR in peace and quiet. Get rid of all the hum and buzz in your office, studio, server room or homelab without sacrificing the performance!
The new router has 18 wired ports, including 16x Gigabit Ethernet ports and two 10G SFP+ cages. It also has a RJ-45 console port on the front panel.
Each group of 8 Gigabit Ethernet ports is connected to a separate Marvell Amethyst family switch-chip. Each switch chip has a 10 Gbps full-duplex line connected to the CPU. The same goes for each SFP+ cage - a separate 10 Gbps full-duplex line. Boards come with 4GB of DDR4 RAM and 128MB of NAND storage.
So as you can see - no bottlenecks. As long as the CPU can handle the processing, all ports can reach wire speed. And this CPU is a beast that can handle a lot. If we look at the performance, you can see that it is trading blows with our CCR1009.
The best part? This brand new CCR is among the most affordable options out there - not only within the CCR series, but on the market in general. One of the most common ways to use this device would be: Gigabit Ethernet ports for the internal network; SFP+ ports for downlink and uplink. The perfect all-in-one solution for small and medium-sized businesses. Easy and efficient.
- 16X GIGABIT ETHERNET PORTS
- 2X 10G SFP+ CAGES
- POWERFUL QUAD-CORE CPU
- RJ-45 CONSOLE PORT
CPU AL32400 1.2 GHz
CPU architecture ARM 64bit
CPU core count 4
Size of RAM 4 GB
RAM type DDR4
Storage 128 MB, NAND
Number of 1G Ethernet ports 16
Number of 10G SFP+ ports 2
Operating system RouterOS v7, License level 6
Switch chip model 88E6191X
Number of Gbit ports per switch (there are two switch-chips) 8
Dimensions 272 x 195 x 44 mm
Operating temperature -20°C to +60°C

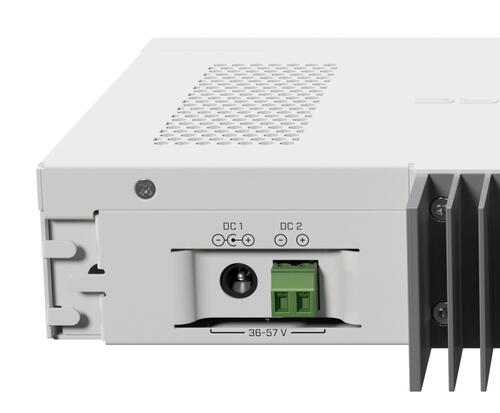

Number of DC inputs 2
Supported input voltage 36-57 V (DC jack) 36-57 (2-pin terminal)
Power adapter Not Included with AU/NZ version
Max power consumption (without attachments) 30 W
Max power consumption 36 W
Rack Mountable Yes, standard 19" kit included
