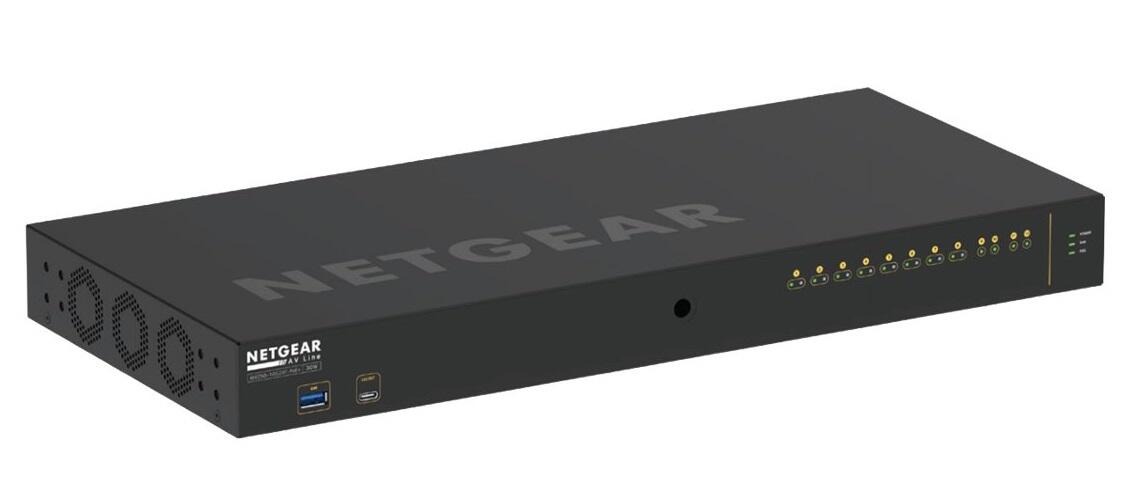

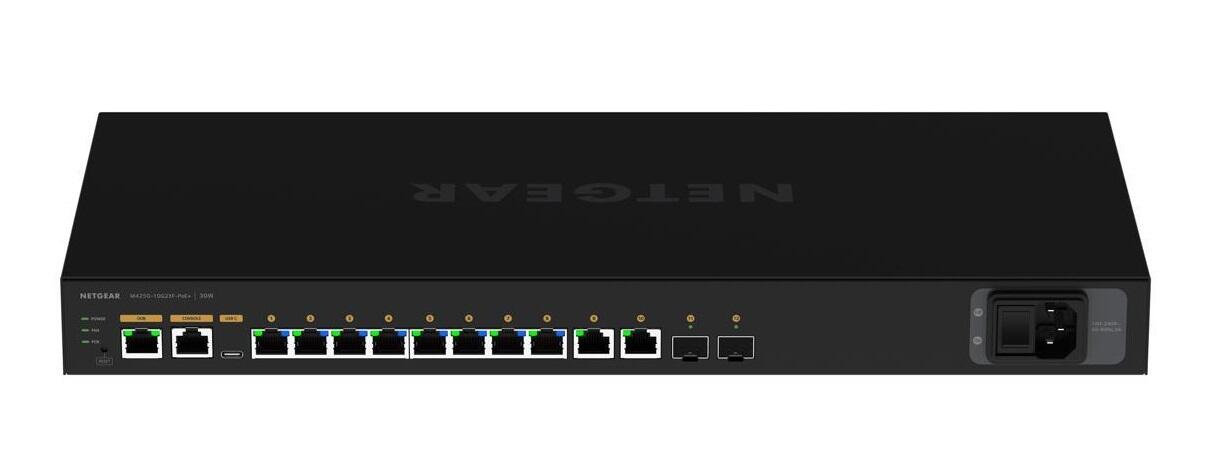

NETGEAR GSM4212PX-100AJS AV Line Managed Switch, 8x1G PoE+, 2xSFP+ (M4250-10G2XF-PoE+)
- PoE+ Switch (240 W PoE Budget)
- L3 - Managed
- 10 x 10/100/1000 (with x 8 PoE+), 2 x 10 Gigabit SFP+
- Side to side airflow - rack-mountable
The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. PoE+ and rear-facing ports ensure a clean integration in AV racks.
M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.
The NETGEAR M4250 switch series was developed and engineered for audio / video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market. AV codecs generally use 1 Gbps or 10 Gbps per stream and the AV Line of M4250 targets the widespread 1 Gbps codecs. PoE+ and rear-facing ports ensure a clean integration in AV racks.
M4250 switch comes pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante, as well as audio / video / control mixed profiles.
Main features |
|
|
Product Description |
NETGEAR AV Line M4250-10G2XF-PoE+ - switch - 12 ports - Managed - rack-mountable |
|
Device Type |
Switch - 12 ports - L3 - Managed |
|
Enclosure Type |
Side to side airflow rack-mountable 1U |
|
Subtype |
10 Gigabit Ethernet |
|
Ports |
10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
|
Power Over Ethernet (PoE) |
PoE+ |
|
PoE Budget |
240 W |
|
Performance |
Switching capacity: 60 Gbps ¦ Firewall throughput (64-byte packet size): 44.64 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs |
|
Capacity |
VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32 |
|
MAC Address Table Size |
16K entries |
|
Routing Protocol |
RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
|
Remote Management Protocol |
RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
|
Features |
VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG) |
|
Compliant Standards |
IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
|
Power |
AC 110 V |
|
Dimensions (WxDxH) |
44 cm x 20 cm x 4.32 cm |
|
Weight |
2.9 kg |
|
Localisation |
Europe |
|
Extended details |
||
General |
||
Device Type |
Switch - 12 ports - L3 - Managed |
|
Enclosure Type |
Side to side airflow rack-mountable 1U |
|
Subtype |
10 Gigabit Ethernet |
|
Ports |
10 x 10/100/1000 (8 PoE+) + 2 x 10 Gigabit SFP+ |
|
Power Over Ethernet (PoE) |
PoE+ |
|
PoE Budget |
240 W |
|
Performance |
Switching capacity: 60 Gbps ¦ Firewall throughput (64-byte packet size): 44.64 Mpps ¦ Latency (1 Gbps): < 2.14 µs ¦ Latency (10 Gbps): < 0.84 µs |
|
Capacity |
VLANs supported: 4093 ¦ ARP entries: 4000 ¦ Multicast entries (IPv4): 512 ¦ Multicast entries (IPv6): 128 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ MSTP instances: 16 ¦ PVST instances: 32 |
|
MAC Address Table Size |
16K entries |
|
Routing Protocol |
RIP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, MLDv2 |
|
Remote Management Protocol |
RMON 1, RMON 2, SNMP, RMON 9, Telnet, HTTPS, SSH, CLI, TACACS+, RADIUS |
|
Encryption Algorithm |
SSL 3.0, TLS 1.2 |
|
Features |
VLAN support, DoS attack prevention, sFlow, Spanning Tree Protocol (STP) support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), DHCP relay, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), 16MB packet buffer, IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), policy based routing, Authentication, Authorization and Accounting (AAA), LLDP-MED, Private VLAN, Protocol Independent Multicast (PIM), Rapid Reconfiguration of Spanning Tree (RSTP), Link Aggregation Group (LAG) |
|
Compliant Standards |
IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.1Qat, IEEE 802.1Qav |
|
Processor |
X ARM A9: 1.25 GHz |
|
RAM |
2 GB |
|
Flash Memory |
256 MB |
|
Expansion / Connectivity |
||
Interfaces |
10 x 10/100/1000 Base-T RJ-45 8 ports (PoE+) ¦ 2 x 10GBase-X SFP+ ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB Type A ¦ 1 x console (USB) Type C |
|
Power |
||
Power Device |
Internal power supply |
|
Installed Qty |
1 |
|
Voltage Required |
AC 110 V |
|
Power Consumption Operational |
25 Watt |
|
Power Consumption Stand by |
12.96 Watt |
|
Miscellaneous |
||
Included Accessories |
Mounting brackets, foot pad set, 2 x SFP slot caps |
|
Cables Included |
Console cable ¦ USB-C to USB-A cable |
|
Rack Mounting Kit |
Included |
|
Compliant Standards |
CCC, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, IEC60950/EN60950, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, GB 4943.1-2011, EN 55032:2012+AC:2013 Class A, CNS 14336-1, IEEE 1588, ICES-003:2016 issue 6 Class A, CISPR 32:2012, EN 61000-3-2:2014 Class A, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, GB/T9254-2008 Class A, ANSI C63.4:2014 |
|
Localisation |
Europe |
|
Dimensions & Weight |
||
Width |
44 cm |
|
Depth |
20 cm |
|
Height |
4.32 cm |
|
Weight |
2.9 kg |
|
Manufacturer Warranty |
||
Service & Support |
Limited warranty - lifetime |
|
Environmental Parameters |
||
Min Operating Temperature |
0 °C |
|
Max Operating Temperature |
45 °C |
|
Humidity Range Operating |
90% (non-condensing) |
|
Min Storage Temperature |
-20 °C |
|
Max Storage Temperature |
70 °C |
|
Humidity Range Storage |
95% (non-condensing) |
