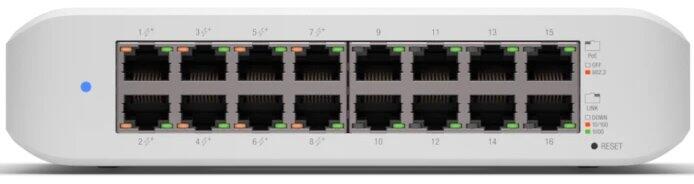

Ubiquiti USW-LITE-16-POE 16-Port UniFi Gigabit Managed PoE+ Switch, 8x PoE Ports
The UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices.
Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total PoE wattage of 45W for UniFi Access Points or other PoE devices.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the UniFi Switch Lite 16 PoE offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (16) Gigabit RJ45 ports including (8) 802.3at PoE+ ports
- Managed by UniFi Controller
- 60W power supply

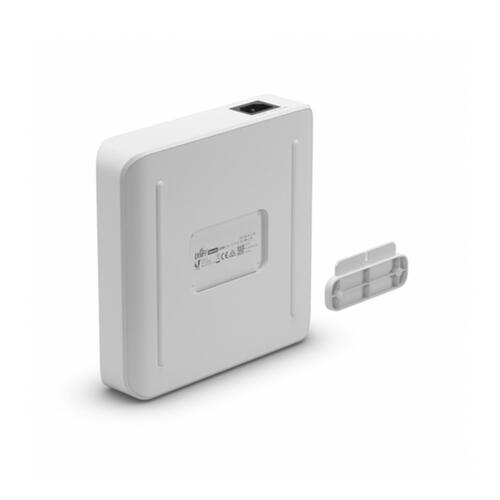

- Wall-mountable (Kit included)
Total Non-Blocking Line Rate |
16 Gbps |
Max. Power Consumption |
15W |
Power Method |

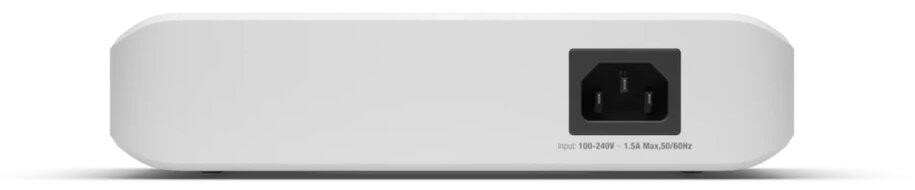

Universal AC Input: 100-240VAC |
Power Supply |
Internal 60W AC/DC Power Supply |
Networking Interfaces |
(16) 10/100/1000 Mbps Ethernet RJ45 |
PoE Interfaces |
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) |
Management Interface |
Ethernet In-Band |
Max PoE+ Wattage per Port by PSE |
30W |
Modes |
SMB Layer 2 PoE Gigabit Ethernet Switch |
Operating Temperature |
-15 to 40° C |
Operating Humidity |
10 - 90% Noncondensing |
Certifications |
CE, FCC, IC |
Dimensions |
191.7 x 185 x 43.7 mm |
Weight |
1.2 kg |
