• DECT Phones
  • Cordless phone for W56P, W70B or W60B IP DECT System

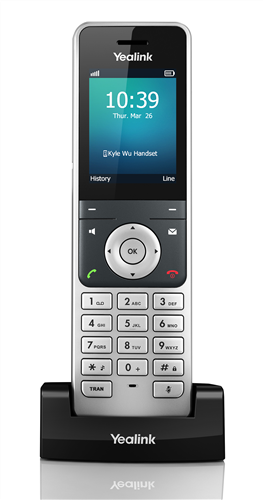

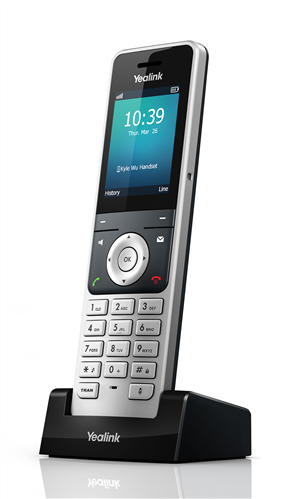

Yealink SIP-W56H Cordless phone for W56P, W70B or W60B IP DECT System

Cordless phone for W56P, W70B or W60B IP DECT System

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

DECT Phone for use with SIP-W56P SIP Base Station.

The W56H is a cordless IP-DECT Handset that can be added to Yealink's W56P scalable IP-DECT Phones. The W56P is supplied with one Handset; up to 4x further handsets can be added.

The W56P is a complete business-grade SIP Cordless Phone. This state of the art IP-DECT solution supports up to 5x W56H cordless IP-DECT Handsets per Base Station, and is designed for enterprises who are looking for a scalable SIP-based mobile communications system that provides immediate cost savings. The W56P supports the Opus high definition voice codec and the CAT-IQ2.0 standard (fully backwards compatible to the DECT GAP standard), ensuring crystal clear calls and a low data bit-rate. Combining the benefits of DECT wireless communication with the rich business features of Voice over IP telephony, users can benefit from freedom of movement, lifelike HD audio voice communications, multi-tasking convenience and professional features like intercom, transfer, call forward, 3-way conferencing and PoE support.

• High-end ID design
• Exceptional HD sound with wideband technology
• Up to 4 simultaneous voice calls
• Up to 5 DECT cordless handsets
• Up to 5 Multiple Lines
• 2.4" 240 x 320 color screen with intuitive user interface
• Up to 30 hours talk time, Up to 400 hours standby time
• Quick charging: 10 mins charge time for 2 hours talk time
• Support USB charging
• Headset connection via 3.5 mm jack
• Charger wall mountable
• New belt clip with better user experience
• Hearing Aid Compatible (HAC)

• High-end ID design
• Exceptional HD sound with wideband technology
• Up to 4 simultaneous voice calls
• Up to 5 DECT cordless handsets
• Up to 5 Multiple Lines
• 2.4" 240 x 320 color screen with intuitive user interface
• Up to 30 hours talk time, Up to 400 hours standby time
• Quick charging: 10 mins charge time for 2 hours talk time
• Support USB charging
• Headset connection via 3.5 mm jack
• Charger wall mountable
• New belt clip with better user experience

Phone Features
• Up to 4 simultaneous calls
• Up to 5 handsets, up to 5 VoIP accounts
• Handset select for receiving call
• Handset and Number select for making call
• Paging, intercom, auto answer
• Call hold, call transfer, 3-way conferencing
• Switching between calls
• Call waiting, mute, DND
• Caller ID display, redial
• Anonymous call, anonymous call rejection
• Call forward (always/busy/no answer)
• Speed dial, voicemail, silence
• Message Waiting Indication (MWI)
• Local phonebook for up to 500 entries (store in the base)
• Remote phonebook/LDAP
• Phonebook search/import/export
• Call history utgoing/missed/accepted)
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Dial Plan, music on hold
• Broadsoft directory, BroadSoft Call Log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
Management
• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)
• Configuration:browser/phone/auto-provision
• Trace package and system log export
Voice and Codecs Features
• Full-duplex speakerphone
• Receiver volume control: 5 steps
• Ringer volume control: 5 steps+off
• Multiple advisory tones
• Acoustic warning for low battery status
• DTMF
• Wideband codec: G.722
• Narrowband codec: G.711µ/A, G.723, G.726, G.729, iLBC, VAD, CNG, AEC, PLC, AJB
• Support VQ-RTCPXR (RFC6035)
Physical Features
• Indoor Range: 20m~50m (The ideal distance is 50m)
• Outdoor Range: 300m (In ideal conditions)
• Standby Time: 400h (In ideal conditions)
• Talk Time: 30h
• 2.4’’ 240x320 pixels color display
• Desktop or wall mountable
• LCD backlit, key backlit
• Energy-saving ECO mode/ECO Mode+
• 12 key numerical keypad, 5 navigation keys 2 softkeys, 6 function keys, 6 shortcut keys
• 3 LEDs on Base: 1 x power, 1 x Network, 1 x Call
• Base station: DC 5V/600mA Output
• Charger: DC 5V/600mA Output
• Phone size: 176mm x 50mm x 24mm
• Base station size: 153mm x 53mm x 23mm
• Operating humidity: 10 ~ 95%
• Operating temp: -10 ~ +50°C
