Ubiquiti UF-NANO U Fiber Nano GPON Optical Network Termination unit

U Fiber Nano GPON Optical Network Termination unit

U Fiber Nano GPON Optical Network Termination with Power Supply.

Please feel free to contact us about this item, and we will recommend an IT Sales and Service Provider in your area.


Resellers: for pricing and to place orders.

In stock email will be sent.
Instock notification already exists.
Order SKU: Supplier Code:

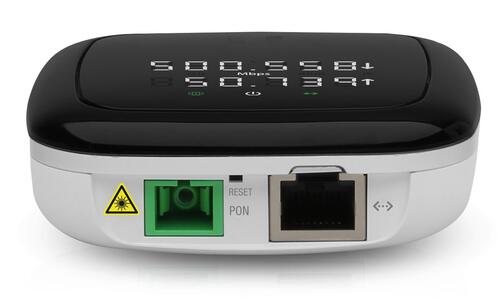

The Ubiquiti UFiber Nano G is a robust, high-performance GPON CPE that features an informational LED display and a sleek, sophisticated industrial design.

The easy-to-read display provides status information: IP address, signal strength, and current throughput.

The Nano G is powered by 24V passive PoE – a single cable to carry both power and data. Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT (coming soon) and third-party OLT devices.

Power supply Included.

  • WAN: (1) GPON Port
  • LAN: (1) Gigabit Ethernet Port
  • GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX)
  • Wavelengths: 1490 nm Downstream (RX),1310 nm Upstream (TX)
  • Display: Digital LED for Status Reporting
  • Mounting: Wall-Mountable (Indoor)

Spec.

Interfaces : (1) GPON WAN, ITU G.984, 2.488 Gbps Downstream, 1.244 Gbps Upstream; (1) GbE LAN, 10/100/1000 Mbps
Management : In-Band Ethernet/PON
Normal Optical Power Range : TX (Class B+): 1.5 dBm to 5 dBm; RX: -8 dBm to -28 dBm
Power Method : 20V to 28V Passive PoE (Pins +4, 5; -7, 8); Dying Gasp Support
Power Consumption : 7W (Max)
Dimensions : 77 x 77 x 28 mm
